Weidmuller 1149400000

The PCB plug-in connector is designed for board connections, featuring a pitch of 5.08 mm and a male header configuration. With a total of 2 poles and a solder pin length of 3.2 mm, the connector is suitable for various applications where THT soldering is required. The component complies with international standards including IEC 60664-1 and IEC 61984, ensuring reliable performance under specified conditions.

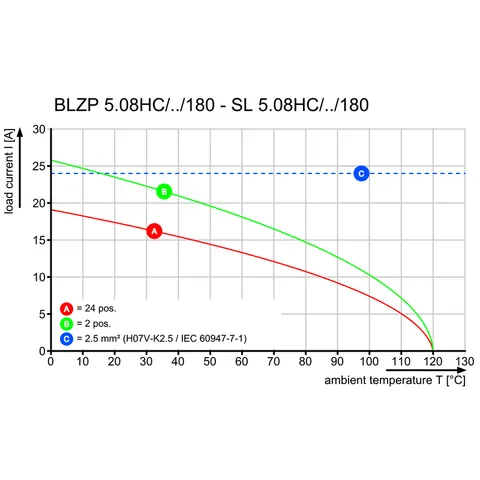

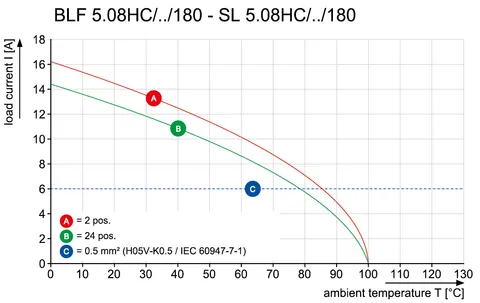

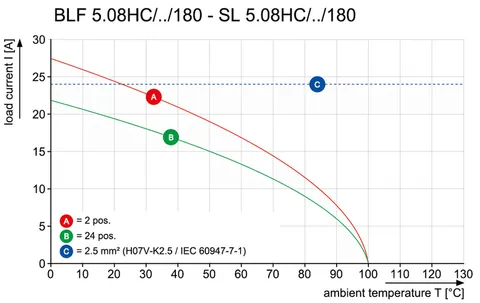

Rated for a maximum voltage of 300 V (Use group B / UL 1059) and a current of 18.5 A, this connector is robust enough for demanding environments. Its construction utilizes PA GF insulating material with a black finish, allowing it to achieve a Comparative Tracking Index (CTI) of ≥ 550. Furthermore, the connector's operational temperature range spans from -50 °C to 100 °C, making it versatile for various industrial applications.

With a net weight of 0.96 g, the connector features a compact design with dimensions of 11.92 mm in width, 15.2 mm in height, and 8.5 mm in depth. The solder pins are octagonal with a diameter of 1.2 mm, ensuring secure connections. The connection can withstand up to 25 plugging cycles and has maximum pulling and plugging forces of 7.5 N and 10 N respectively. The connector is packaged in a box with dimensions suitable for efficient storage.
