Weidmuller 1155050000

This PCB plug-in connector, designated as SL 5.08HC/04/90 3.2SN BK BX, features a male header configuration with a 5.08 mm pitch and is designed for THT solder connections. It has 4 poles and a 90° outgoing elbow, facilitating compact circuit board layouts.

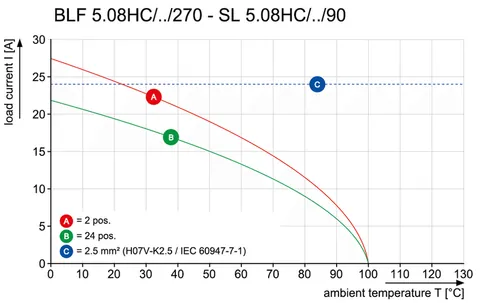

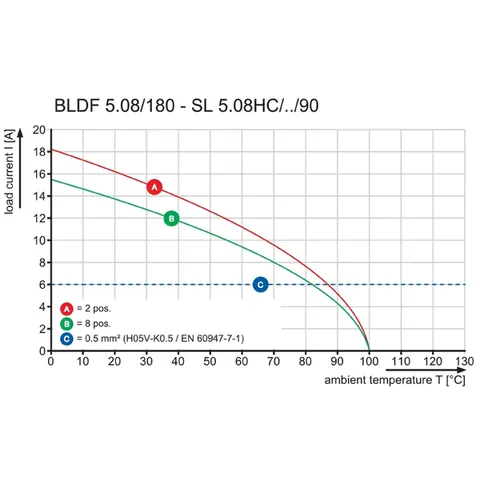

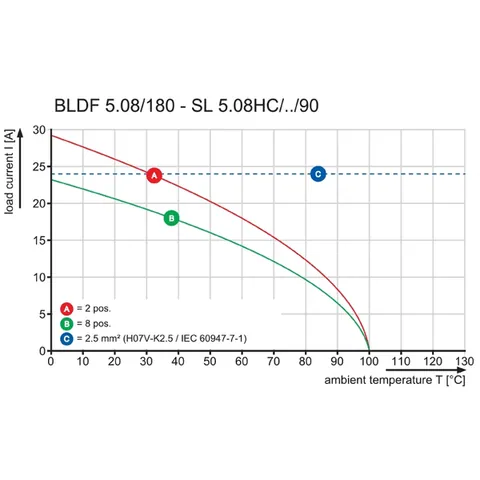

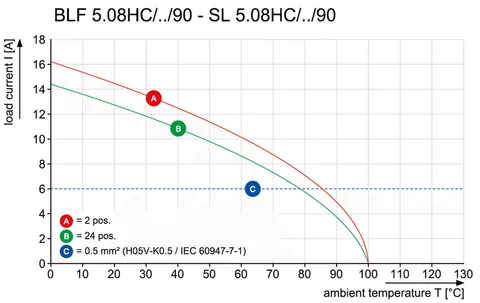

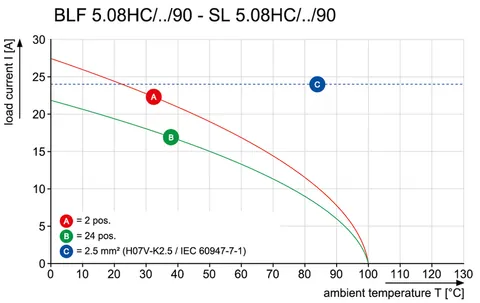

Constructed from PA GF insulating material and finished in black, this connector meets stringent safety and performance standards, including cURus and IEC approvals. Rated for a maximum operating voltage of 300 V and a current capacity of up to 18.5 A, it operates effectively in various environments with an operating temperature range of -50 °C to 100 °C.

The solder pin length measures 3.2 mm, with a tinned copper-manganese contact surface, ensuring reliable electrical connections. The component is capable of withstanding plugging cycles of up to 25, making it suitable for repeated use in industrial applications.

Additional features include a comparative tracking index (CTI) of ≥ 550 and a UL 94 flammability rating of V-0, which enhance its reliability under challenging conditions. The connector's dimensions are optimized for space efficiency, with a width of 20.32 mm and a height of 11.7 mm.
