Weidmuller 1155400000

This male header PCB plug-in connector is designed with a closed side and utilizes THT solder connection, ensuring effective integration into circuit boards. With 9 poles and a pin length of 3.2 mm, this component is suitable for various applications requiring reliable electrical connections.

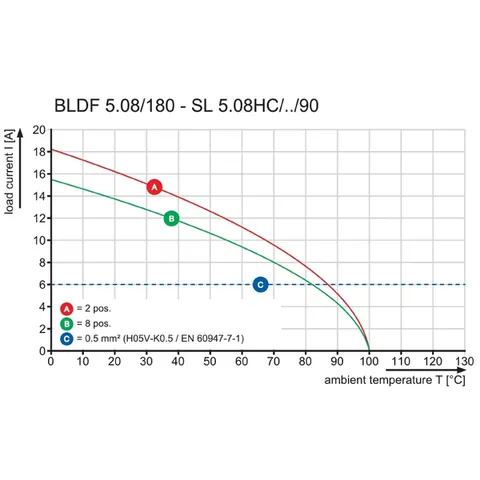

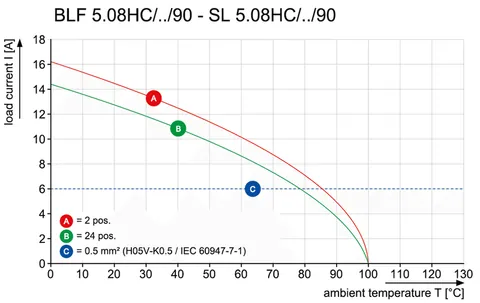

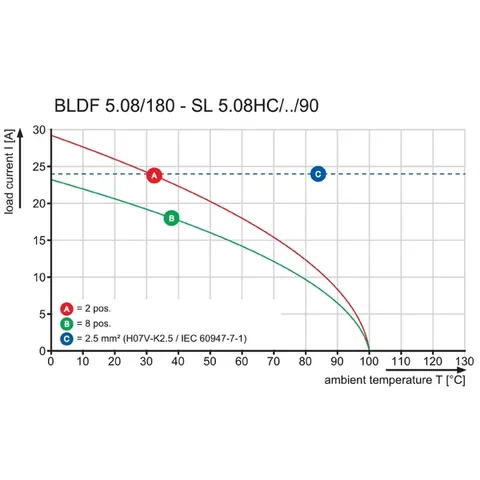

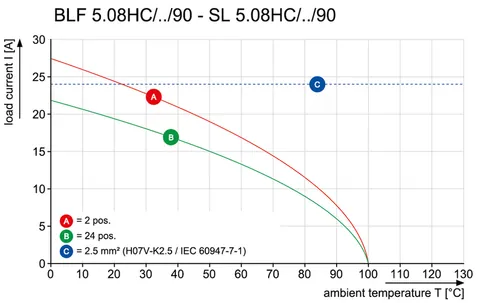

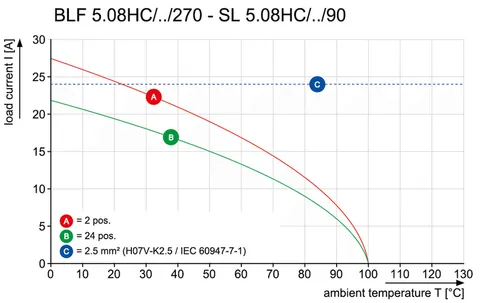

The connector operates within a rated voltage of 300 V for both Use Group B and D as per UL 1059 standards, supporting a rated current of 18.5 A for Use Group B and 10 A for Use Group D. It meets the requirements of IEC standards, with a maximum rated current of 24 A at 20°C for the minimum number of poles and 19 A for the maximum.

Constructed from PA GF insulating material in black, this connector exhibits a high comparative tracking index (CTI) of ≥ 550, ensuring durability and safety in varied environments. It is rated for operation in temperatures ranging from -50 °C to 100 °C, making it suitable for both indoor and outdoor applications.

The product conforms to multiple international standards and certifications including cURus, EAC, and ROHS, ensuring compliance with global safety requirements. The connector is packed in a box with dimensions of 35 mm x 115 mm x 168 mm, facilitating ease of storage and handling. This product is a part of the OMNIMATE Signal series, designated under the code SL 5.08HC/09/90G 3.2SN BK BX.
