Weidmuller 1155600000

The SL 5.08HC/04/90B 3.2SN BK BX is designed as a PCB plug-in connector with a male header, incorporating dovetails for secure block fixation. This model utilizes a THT solder connection with a pitch of 5.08 mm and supports a configuration of 4 poles. The solder pin length measures 3.2 mm and is tinned for enhanced conductivity.

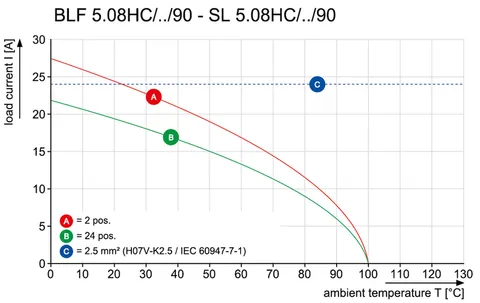

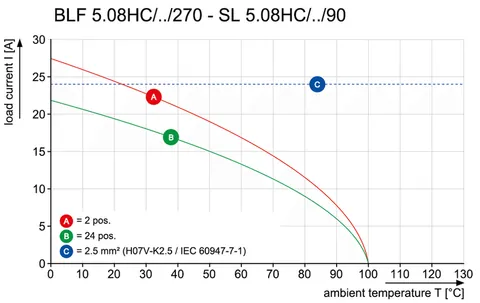

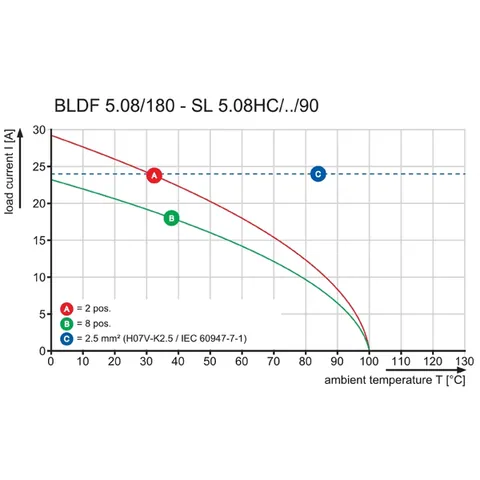

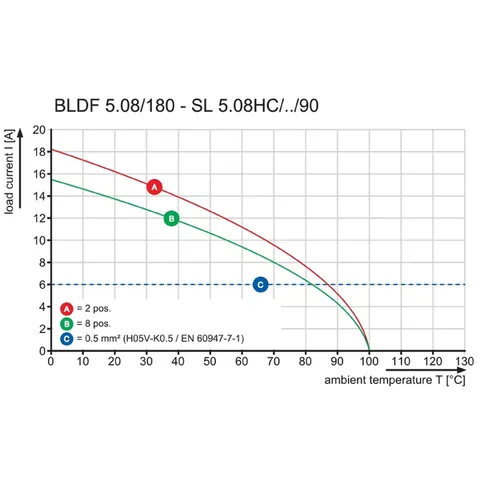

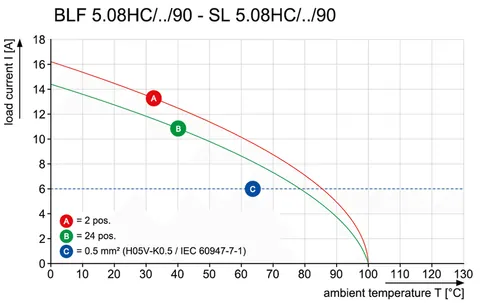

In terms of electrical ratings, the connector is suitable for a maximum voltage of 300 V and can handle a rated current of up to 18.5 A under specific conditions as per UL 1059 standards. The operating temperature range is broad, from -50 °C to 100 °C, making it applicable in various environments. The insulating material is a black PA GF, with a Comparative Tracking Index (CTI) of ≥ 550, ensuring reliable performance.

This product complies with multiple international standards, including IEC 60664-1, IEC 61984, and holds certifications such as cURus and EAC. It comes packaged in a box with precise dimensions of 22.08 mm in width and 11.7 mm in height, and a net weight of 1.73 g. Additionally, it supports a maximum of 25 plugging cycles, demonstrating its durability in repeated use.
