Weidmuller 1156830000

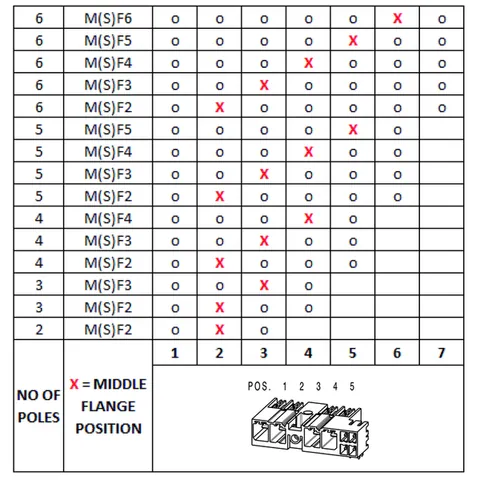

The SV 7.62HP/02/90MSF2 SC/08R SN BK BX is designed for PCB applications, featuring a pitch of 7.62 mm and a solder pin length of 3.5 mm. This connector is equipped with a male header that includes a closed side and a middle screw flange, facilitating secure connections.

It adheres to various standards, including IEC 60664-1 and IEC 61984, ensuring reliability in performance. The component supports a rated voltage of up to 600 V in specific configurations and has a rated current of 35 A for use groups B and C, with stringent clearance and creepage distances of 6.9 mm and 9.6 mm, respectively. The connector exhibits exceptional insulation resistance, with values exceeding 108 Ω and a comparative tracking index (CTI) of ≥ 500.

Constructed from PA GF insulating material and finished in black, it meets UL 94 flammability rating V-0 and has superior thermal stability, operating within a temperature range of -50 °C to 130 °C. This connector features a touch-safe design compliant with DIN VDE standards, making it suitable for various industrial applications.

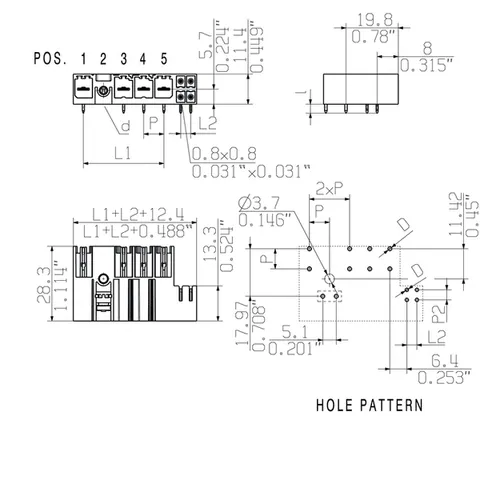

With dimensions of 14.9 mm in height and 28.3 mm in depth, the component is packaged in a box with specific dimensions for convenient handling. This product is part of the OMNIMATE Power series, classified under EClass 9.0: 27-44-04-02, ensuring compatibility with a wide range of systems.
