Weidmuller 1156950000

The SV 7.62HP/05/90MF3 SC/08R SN BK BX is a male header PCB plug-in connector designed for THT solder connections. This component features a 7.62 mm pitch and accommodates 5 poles with an outgoing elbow angle of 90°. The solder pin length is 3.5 mm, ensuring compatibility with various PCB designs.

Constructed with PA GF insulating material, the connector exhibits a black color, corresponding to RAL 9011. It meets multiple standards, including IEC 60664-1 and IEC 61984, with a rated voltage of 300 V (Use group B / UL 1059) and a rated current of 35 A (Use group B / UL 1059). The connector is also rated for a maximum impulse voltage of 6 kV under pollution degree II/2. Additionally, it is compliant with CSA, cURus, and EAC approvals.

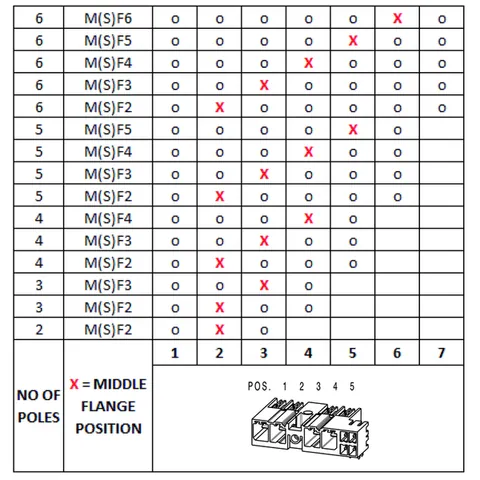

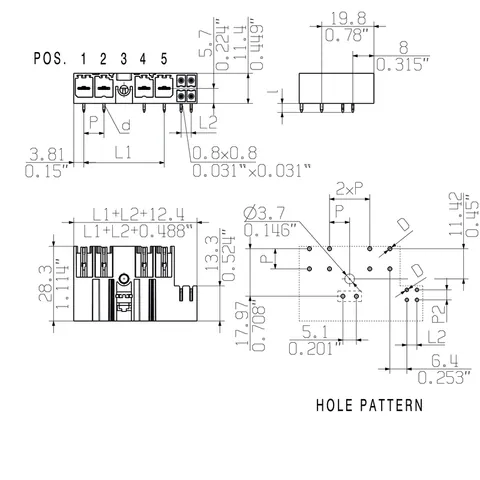

Dimensions of the connector include a height of 14.9 mm and a depth of 28.3 mm, making it suitable for space-constrained applications. The operational temperature range extends from -50 °C to 130 °C, allowing for use in diverse environments. The touch-safe protection is rated IP 20, ensuring user safety during handling.

For installation, the connector's solder pin dimensions are 0.8 x 1.0 mm, with a solder eyelet hole diameter of 1.4 mm. The component is designed with a volume resistance of 2.00 mΩ, contributing to reliable electrical performance. It is capable of withstanding 25 plugging cycles, promoting durability in repeated use.
