Weidmuller 1194660000

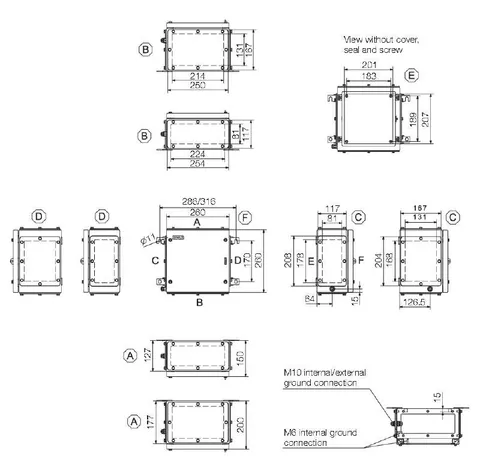

The KTB MH 262620 S4E1 is a terminal box constructed from stainless steel 1.4404 (316L), ensuring durability in demanding environments. With overall dimensions of 260 mm in height, 260 mm in width, and 200 mm in depth, this enclosure is suitable for various installations in industries prone to explosive risks, such as the oil, gas, and chemical sectors.

This model features a welded-on M6 stainless-steel earth stud, enhancing its grounding capabilities. The enclosure is designed with an access opening measuring 207 mm in height and 201 mm in width, facilitating easy access to internal components. The maximum payload capacity is 27 kg.

It includes multiple gland plates located at the bottom, suitable for various cable gland sizes, and complies with multiple standards including DIN EN 62208 and IEC 60079 series. The enclosure maintains a high protection degree of IP66/IP67 and operates effectively in temperatures ranging from -60 °C to 135 °C, making it ideal for extreme conditions.

This product also holds several certifications, including those for ATEX, IECEx, and EAC, which affirm its suitability for use in potentially explosive atmospheres. The lid can be opened at an angle of 130°, providing easy access for maintenance.
