Weidmuller 1195490000

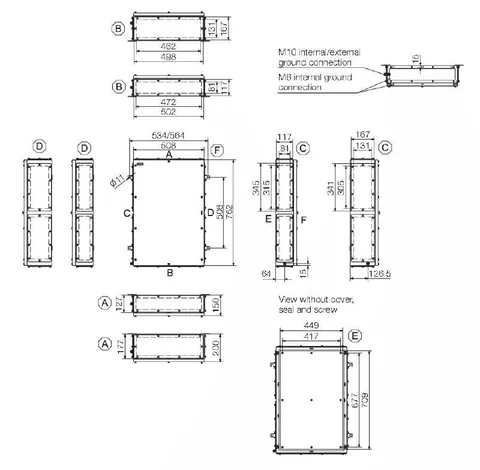

The Terminal Box Multi Hinge KTB MH 765020 S4E4 is designed for use in environments with explosive risks, such as the oil and gas, chemical, and process industries. Its stainless steel 1.4404 (316L) construction, electropolished for enhanced durability, conforms to various standards including DIN EN 62208 and IEC 60079. With an overall height of 762 mm, width of 508 mm, and depth of 200 mm, this enclosure features multiple gland plates at the bottom, top, left, and right, allowing versatile cable entry options.

The enclosure is equipped with a welded-on M6 stainless-steel earth stud for reliable grounding. It has a maximum payload capacity of 155 kg and an opening angle for the lid of 130°, facilitating easy access. The internal dimensions allow for various horizontal and vertical assembly configurations, supporting terminal configurations such as WDU and ZDU series terminals.

This product is compliant with numerous certifications including ATEX, IECEx, and EAC, highlighting its suitability for demanding applications. The protection degree of IP66 and IP67 ensures robust performance against dust and water ingress. Furthermore, the operating temperature range spans from -60 °C to 135 °C, with impact resistance ratings of up to 10 J in standard versions. Note that the enclosure attachment includes four welded-on mounting feet for secure installation.
