Weidmuller 1200130000

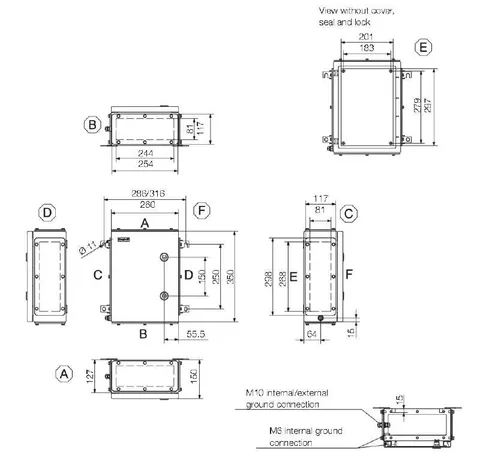

The KTB QL 352615 S4E2 is a terminal box designed for a range of industrial environments. This empty enclosure is constructed from stainless steel 1.4404 (316L) and is electropolished for enhanced corrosion resistance. Its dimensions are 350 mm in height, 260 mm in width, and 150 mm in depth, making it suitable for various applications.

The enclosure features both top and bottom gland plates, accommodating a variety of cable entries. It includes a welded-on M6 stainless-steel earth stud for effective grounding. The maximum payload capacity is 36 kg, ensuring it can support substantial loads while maintaining structural integrity.

This product complies with several international standards, including DIN EN 62208 for empty enclosures and IEC standards for explosive atmospheres, making it suitable for use in explosive risk zones such as the oil and gas industry, chemical processing, and offshore applications. The operating temperature range extends from -60 °C to 135 °C, with an impact resistance of 7 J for the ATEX version and 10 J for the standard version, ensuring robustness in demanding environments.

Notably, the KTB QL 352615 S4E2 is equipped with a protection degree of IP66, although this may be limited at higher temperatures. The lid is secured with a quarter-turn fastener, facilitating easy access while ensuring safety. For vertical and horizontal assembly, it supports various terminal types, allowing customization based on specific installation needs.
