Weidmuller 1234600000

The PM 5.08/08/90 3.5SN OR BX is a terminal block designed for printed circuit boards, featuring a pitch of 5.08 mm and accommodating 8 poles. The solder pin length is 3.5 mm, ensuring a secure connection. This component utilizes a pressure clamp connection, with a maximum clamping range of 2.5 mm², making it suitable for various wire connections.

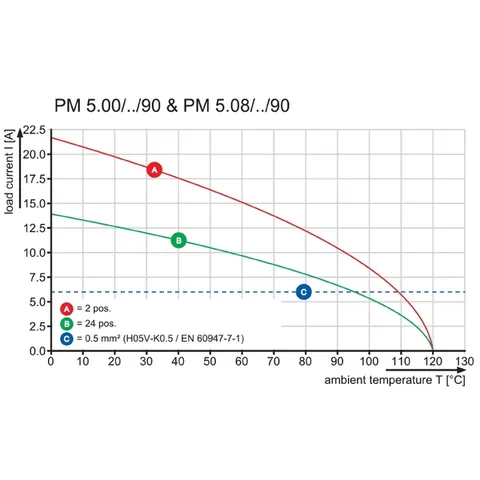

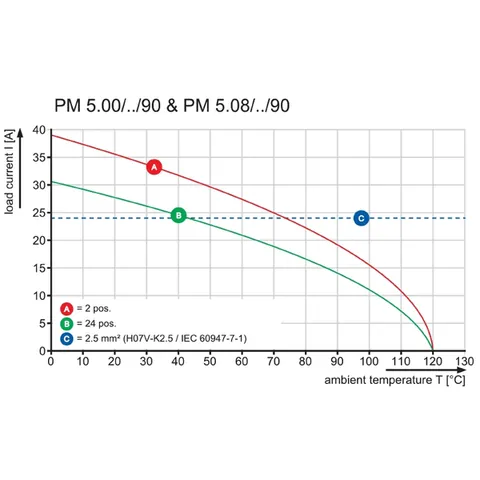

Rated for a maximum current of 15 A at 300 V in use group B and 10 A in use group D, the terminals meet standards set by UL 1059 and IEC 60664-1. The product is designed to operate within a temperature range of -50 °C to 120 °C, providing versatility for different environments. Additionally, it exhibits a comparative tracking index (CTI) of ≥ 600, ensuring reliable performance.

The housing is constructed from Wemid (PA) in an orange color, and features a UL 94 flammability rating of V-0, indicating its robustness in various applications. This terminal block is compliant with multiple certifications including CSA and EAC, further ensuring its reliability in industrial settings. The product's configuration allows for a touch-safe design according to DIN standards, enhancing user safety during installation and operation.
