Weidmuller 1241350000

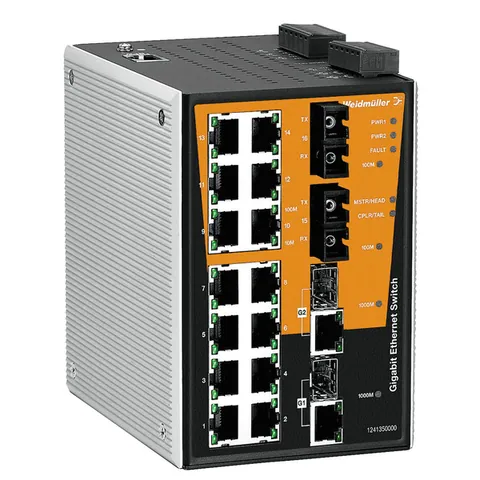

This managed network switch features a total of 18 ports, including 14 RJ45 10/100BaseT(X) ports, 2 SC Single-mode ports, and 2 combo ports for flexible connectivity options. The device operates within an IP30 protection degree, suitable for industrial environments, with an operational temperature range from 0 °C to 60 °C.

The switch supports data switching via Store and Forward technology, with a backplane bandwidth of 7.2 Gbps. It accommodates up to 256 IGMP groups and has a MAC table size of 8K, enhancing its performance in managing network traffic. The VLAN capabilities include a maximum of 64 available VLANs and support for VLAN IDs ranging from 1 to 4094.

In terms of fiber optic capabilities, the switch supports 100BaseFX with a single-mode link budget of 29 dB, enabling typical distances of up to 40 km. The device is compliant with various EMC standards, including EN 55032 and IEC 61000 series, ensuring compatibility in diverse environments. The device also includes features like alarm contacts and LED indicators for power status, fault detection, and operational monitoring.

Dimensions of the switch are 94 mm in width, 135 mm in height, and 142.7 mm in depth, with a net weight of 1,630 g. It is designed for DIN rail or panel mounting, providing versatility in installation. The product is classified under ETIM 6.0 as EC000734 and is compliant with industry standards for safety and reliability.
