Weidmuller 1289540000

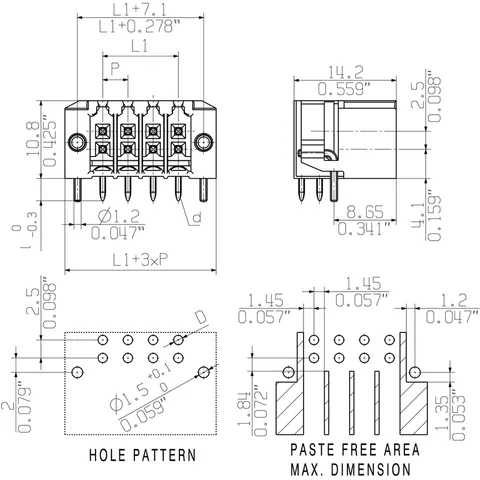

The PCB plug-in connector is designed for reliable board connectivity with a pitch of 3.50 mm and supports 22 poles configured at a 90° angle. The solder pin length measures 3.2 mm and is tinned for enhanced conductivity.

Constructed from LCP GF insulating material, the connector exhibits a color similar to RAL 9011 and is rated for a temperature range from -50 °C to 120 °C. It is suitable for use in environments with a maximum humidity of 80% and complies with various standards including IEC 60664-1 and IEC 61984.

Notably, the connector has a rated voltage of 150 V and a rated current of 10 A according to UL 1059 standards for Use Group B. It is also characterized by a short-time withstand current resistance of 3 x 1s at 80 A. The device is packaged in a box with dimensions measuring 42.1 mm in width, 14 mm in height, and 14.2 mm in depth, weighing 9.528 g.

For added safety, the connector meets touch-safe protection requirements according to DIN VDE 57 106 and DIN VDE 0470, classified with an IP 20 rating. The component is compatible with 25 plugging cycles and can be coded to prevent incorrect connections.

Approval certifications include CSA, cURus, and EAC, ensuring compliance with industry standards.
