Weidmuller 1290010000

The 3.50 mm PCB plug-in connector features a male header with 34 poles arranged in a 90° configuration. With a solder pin length of 1.5 mm, this connector is suitable for THT/THR solder connections, ensuring reliable electrical connections. The component is designed for a variety of applications, with a rated voltage of 150 V for use group B and 50 V for use group C as per UL 1059 standards.

This connector meets several stringent standards, including IEC 60664-1 and IEC 61984, with a rated current of 10 A. It is constructed from LCP GF insulating material, providing exceptional resistance with a Comparative Tracking Index (CTI) of ≥ 175, and features a black color matching RAL 9011. The product is compliant with multiple approvals, including CSA and cURus, and adheres to RoHS directives.

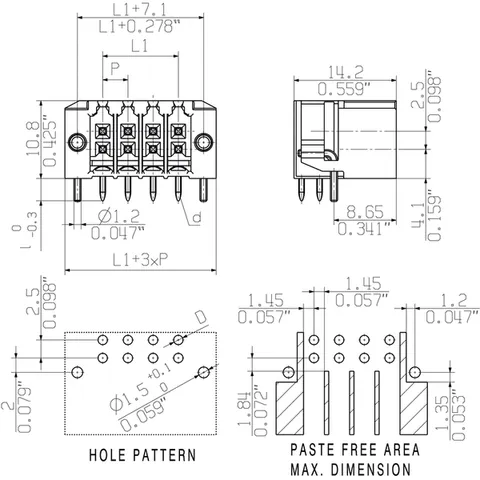

Dimensions of the connector are as follows: a width of 63.1 mm, height of 12.3 mm, and depth of 14.2 mm, with a net weight of 13.58 g. The connector is designed for operation within a temperature range of -50 °C to 120 °C, accommodating various environmental conditions. Its moisture sensitivity level (MSL) is rated at 1, enhancing its durability in different applications.

For packaging, the product is provided in a box with specific dimensions: length of 30 mm, width of 135 mm, and height of 350 mm. The connector is part of the OMNIMATE Signal - series B2C/S2C 3.50 - 2-row family and can withstand up to 25 plugging cycles. The specifications reflect the maximum values, with further details...
