Weidmuller 1330270000

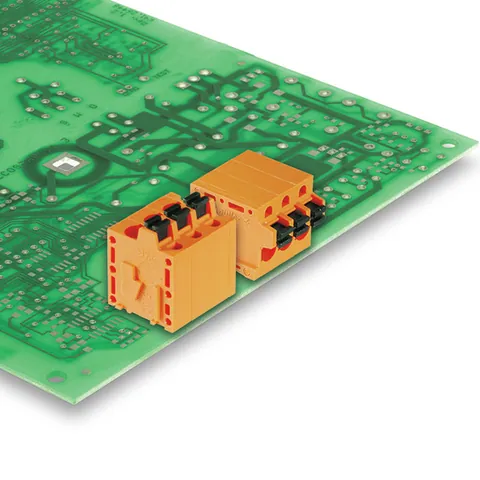

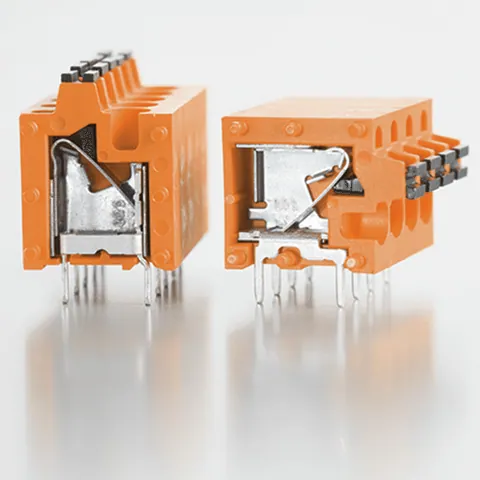

The terminal block is designed for printed circuit board applications, characterized by a 5.00 mm pitch and 10 poles arranged at a 180° angle. It incorporates PUSH IN wire connection technology, accommodating a maximum clamping range of 2.5 mm². The solder pin length is precisely 3.5 mm, ensuring compatibility with various soldering processes.

Constructed from high-quality materials, the insulating element is made from Wemid (PA) with an orange color. The operational elements consist of PBT and are presented in grey. The assembly is suitable for temperatures ranging from -50 °C to 120 °C, with a storage temperature range of -25 °C to 55 °C. The terminal block conforms to multiple standards, including IEC 60664-1 and IEC 61984, with approvals from CSA, cURus, and EAC, making it compliant with international safety and performance benchmarks.

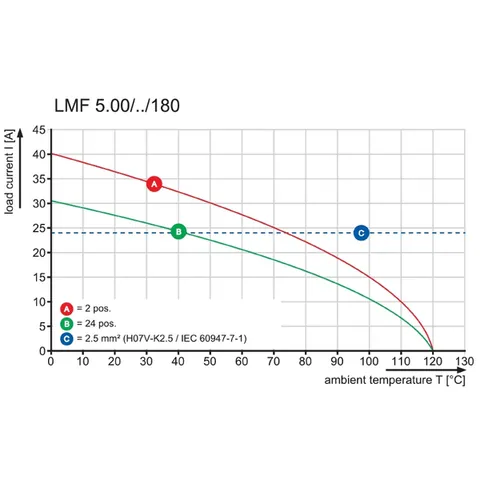

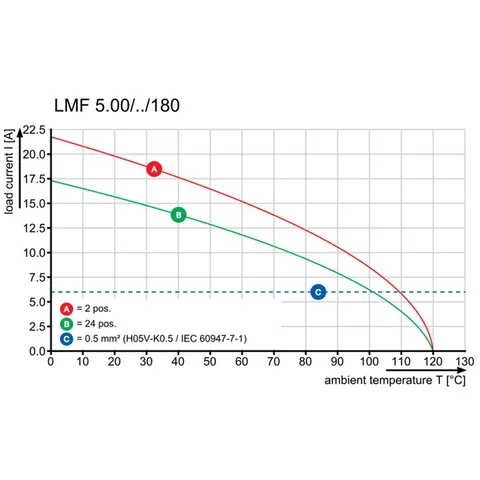

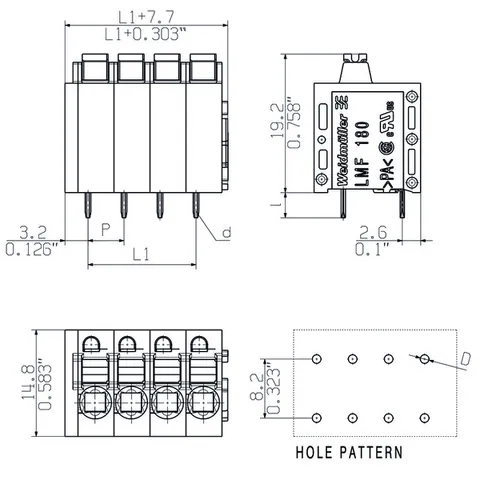

With a net weight of 17.667 g and dimensions of 52.7 mm in width, 22.7 mm in height, and 14.8 mm in depth, this terminal block is compact and efficient for various electrical applications. It is capable of supporting a rated voltage of up to 400 V under pollution degree II conditions and can handle a rated current of 24 A at 20 °C across its poles. The product family is identified under the OMNIMATE Signal series, providing reliability and robust performance for industrial automation tasks.
