Weidmuller 1330710000

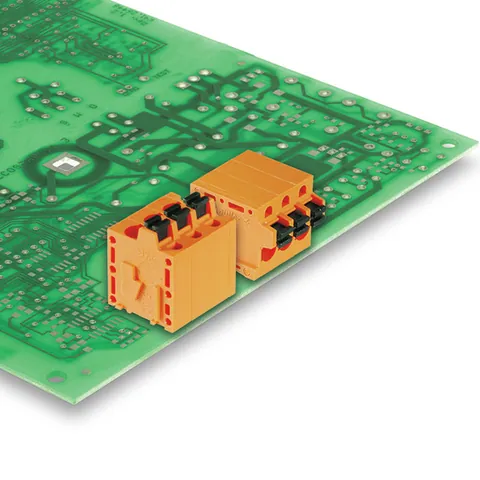

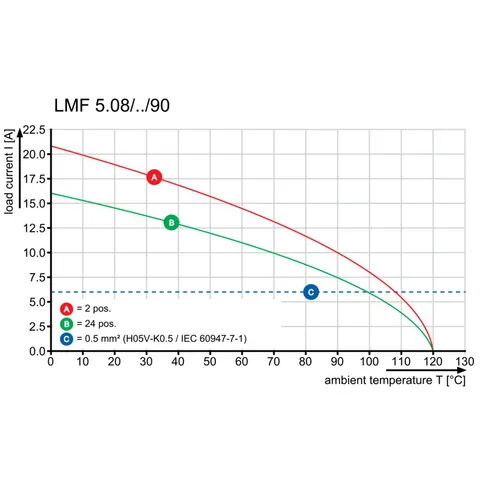

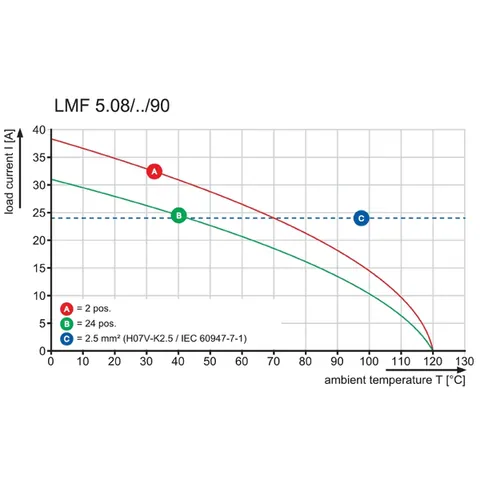

The LMF 5.08/02/90 3.5SN OR BX is a printed circuit board terminal designed for efficient connectivity. With a pitch of 5.08 mm, it provides a maximum clamping range of 2.5 mm², making it suitable for a variety of wiring applications. This terminal block is compliant with several standards, including IEC 60664-1 and IEC 61984, and is rated for a voltage of 300 V with a maximum current of 20 A under specified conditions.

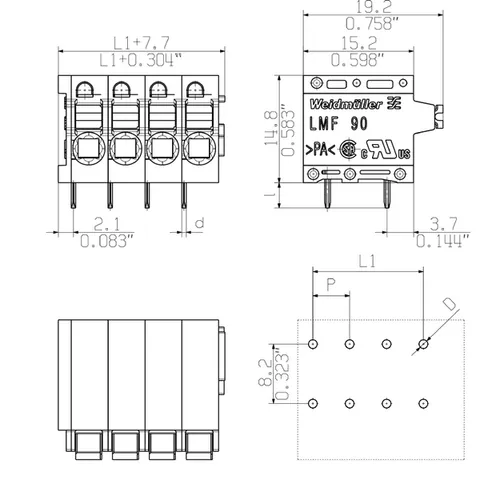

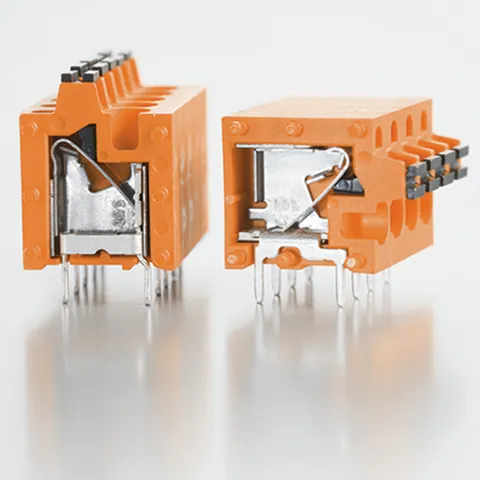

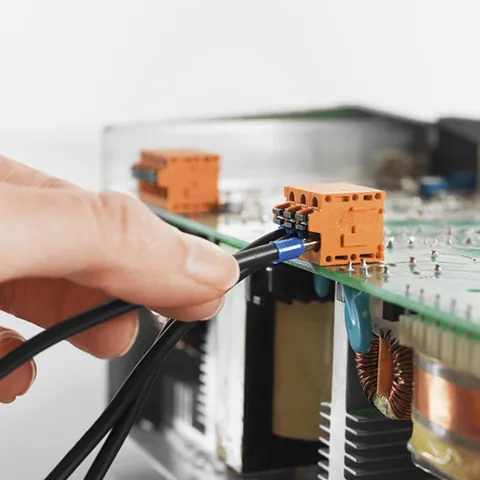

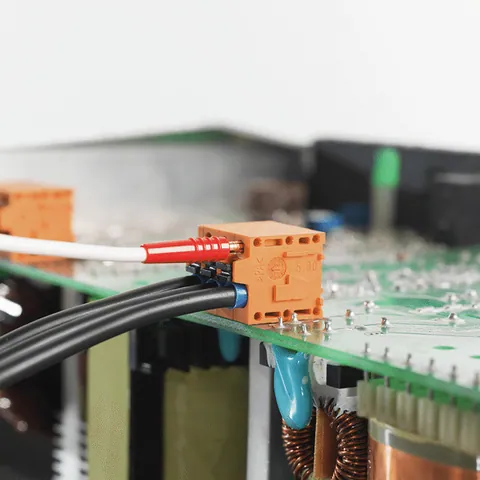

Constructed from Wemid (PA) insulating material with a distinctive orange color, the terminal is equipped with PUSH IN wire connection for straightforward installation. It features a 90° conductor outlet direction, ensuring effective space management on PCBs. The dimensions include a width of 12.78 mm, a height of 18.3 mm, and a depth of 19.2 mm, with a net weight of 3.84 g. The solder pin length measures 3.5 mm, which facilitates secure connections.

Additionally, the terminal block adheres to various approvals such as CSA and cURus, ensuring it meets international standards for safety and performance. The operating temperature range is extensive, from -50 °C to 120 °C, allowing versatility in different environments. The device is packaged in a box for convenience, with packaging dimensions of 30 mm in length, 135 mm in width, and 350 mm in height.
