Weidmuller 1330850000

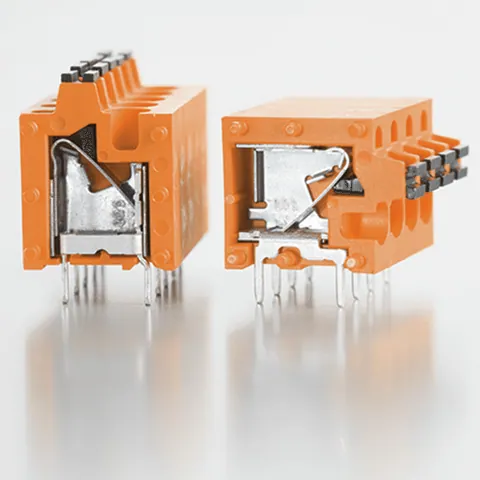

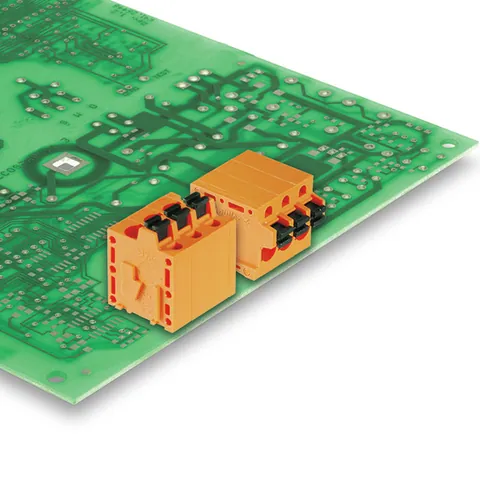

The LMF 5.08/15/90 3.5SN OR BX is a printed circuit board terminal designed with a 5.08 mm pitch and 15 poles arranged at a 90° angle. The terminal's solder pin length measures 3.5 mm, suitable for various applications requiring reliable connections.

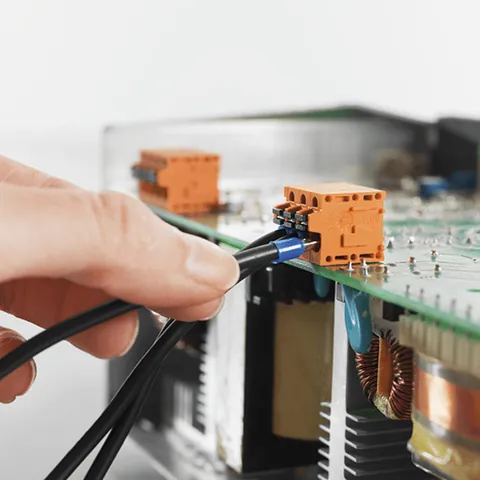

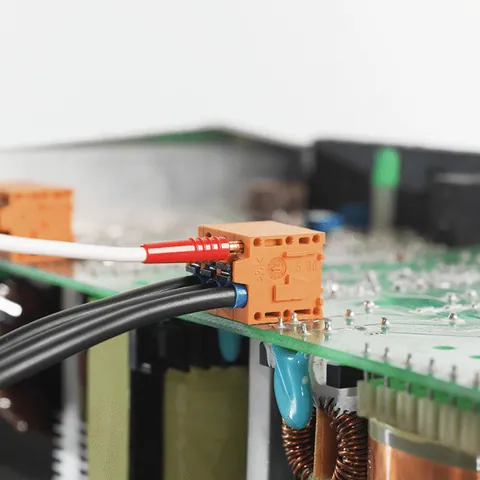

This component utilizes a PUSH IN wire connection method, accommodating a maximum clamping range of 2.5 mm². It is constructed from insulating material Wemid (PA) and features an orange exterior, ensuring visibility in complex assemblies. The terminal is tested according to IEC 60664-1 and IEC 61984 standards, achieving a rated voltage of up to 400 V under specific conditions, with a rated current of 24 A.

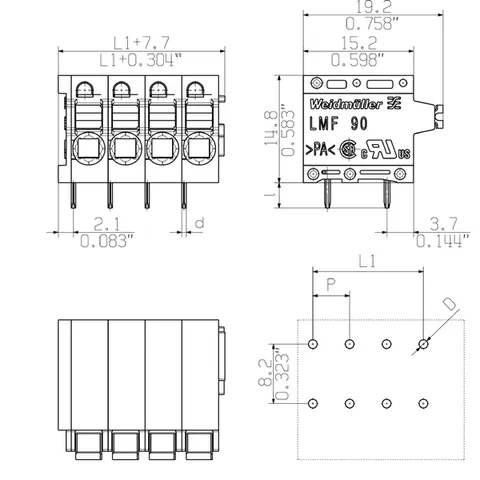

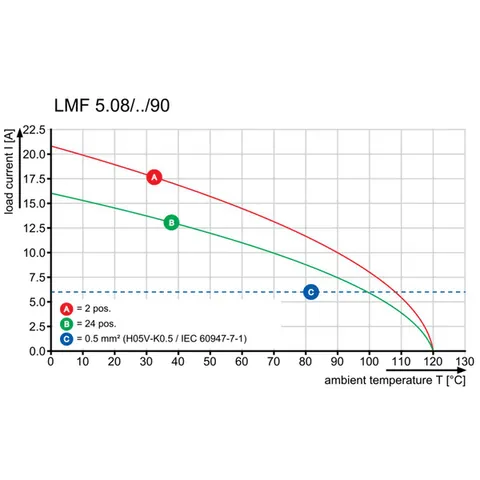

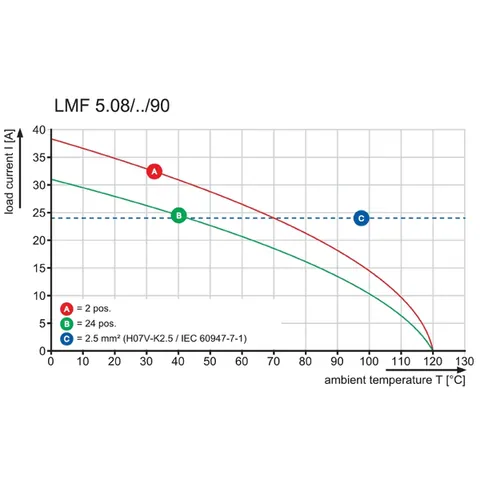

With a compact design, it measures 78.82 mm in width, 18.3 mm in height, and 19.2 mm in depth, making it suitable for space-constrained environments. The terminal operates efficiently within a temperature range of -50 °C to 120 °C. Additional approvals include CSA and cURus, confirming its compliance with international safety standards. For further specifications, refer to the associated approval certificates, as the rated data is contingent upon the component configuration.
