Weidmuller 1331130000

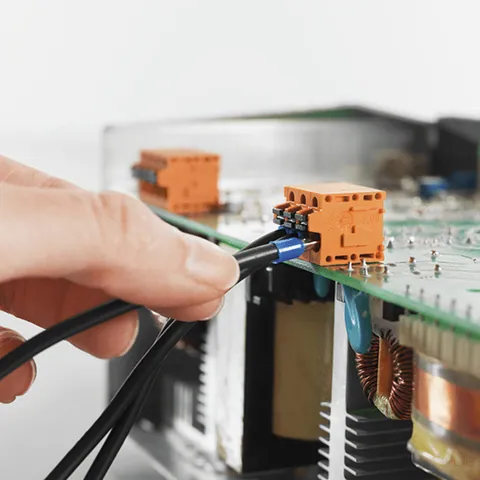

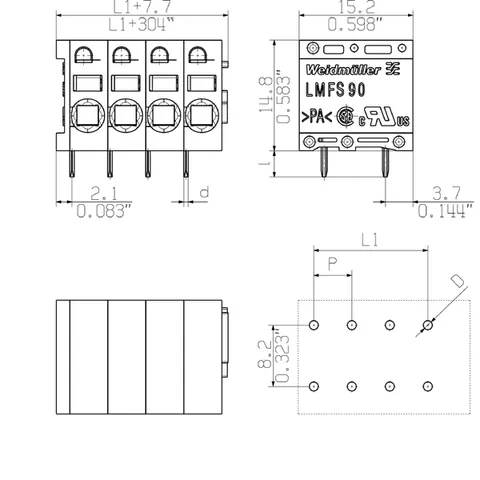

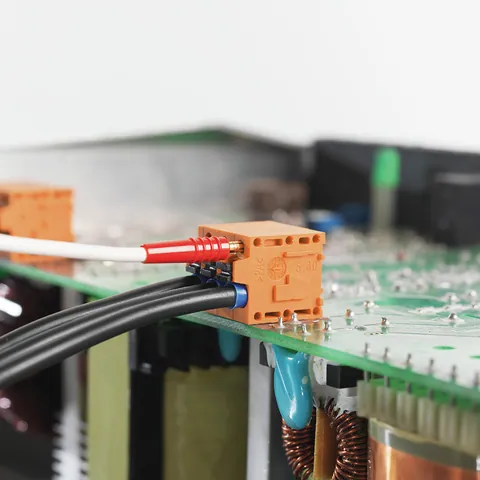

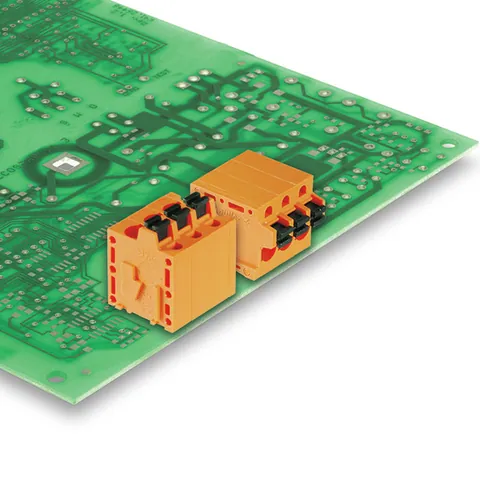

The LMFS 5.08/16/90 3.5SN OR BX is equipped with 16 poles and a pitch of 5.08 mm, allowing for efficient terminal connections on printed circuit boards. This model features a solder pin length of 3.5 mm, suitable for through-hole technology (THT) solder connections, and is designed for a 90° conductor outlet direction.

Constructed from Wemid (PA) insulating material, the terminal exhibits a high Comparative Tracking Index (CTI) of ≥ 600 and is rated for operation in temperatures ranging from -50 °C to 120 °C. The device is compliant with various international standards, including UL, CSA, and IEC, ensuring its suitability for a wide range of applications.

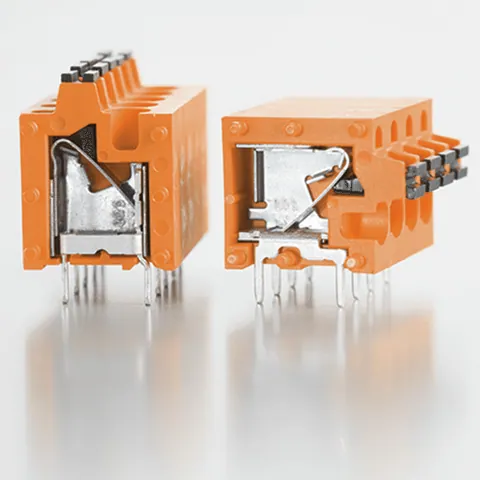

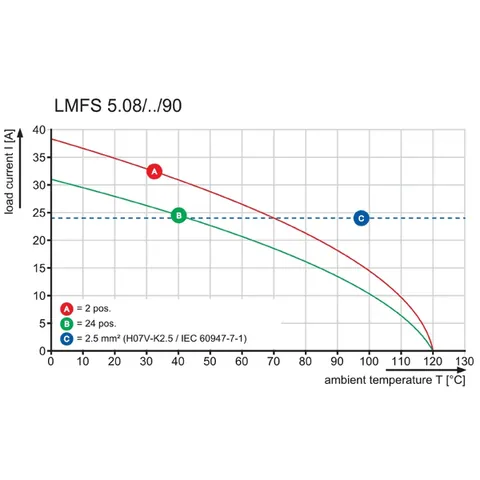

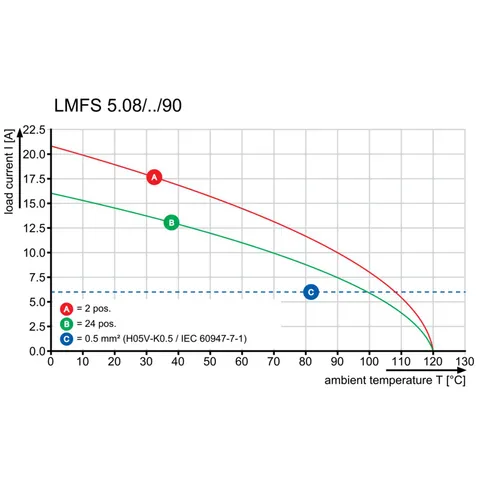

The rated voltage for pollution degree II/2 is 400 V, while the rated current can reach up to 24 A at 20 °C. The terminal’s clamping range accommodates wire cross-sections from 0.12 mm² to 2.5 mm² (AWG 24 to AWG 12), making it versatile for different wire types. It is suitable for use with both solid and flexible conductors.

Notably, the terminal is packaged in a box with dimensions of 348 mm x 135 mm x 30 mm, and it adheres to touch-safe protection standards, ensuring it is safe from accidental contact. The insulation strength is rated at ≥ 108 Ω.
