Weidmuller 1357850000

The S2CD-THR 3.50/28/90G 3.2SN BK BX is designed as a PCB plug-in connector, characterized by a male header and a closed side configuration. This connector employs a THT/THR solder connection with a pitch of 3.50 mm and supports up to 28 poles. The solder pin length measures 3.2 mm, facilitating reliable electrical connections.

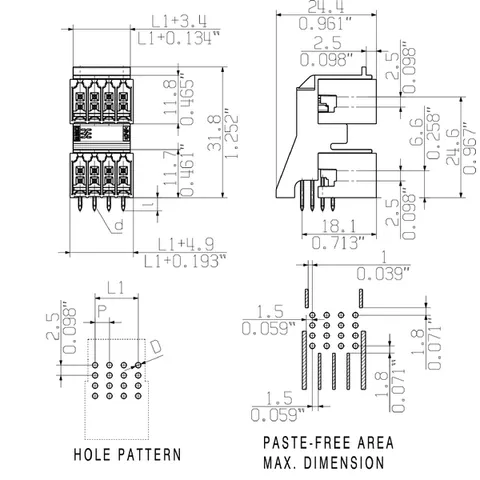

Rated for a maximum voltage of 150 V in Use group B according to UL 1059, this connector also adheres to CSA standards and is classified under various IEC standards including IEC 60664-1. Its compact dimensions—25.9 mm in width, 35 mm in height, and 24.4 mm in depth—make it suitable for space-constrained applications.

The connector is constructed from LCP GF insulating material, ensuring a Comparative Tracking Index (CTI) of ≥ 175, with a flammability rating of UL 94 V-0. It is designed to operate effectively in a temperature range from -50 °C to 120 °C, and can withstand a maximum relative humidity of 80% during storage.

With touch-safe protection compliant with DIN VDE 57 106 and IP 20, the connector is engineered for safety and usability. The design allows for up to 25 plugging cycles, making it a durable choice for various electronic applications. This product falls under the OMNIMATE Signal - series B2C/S2C family and is available in packaging that meets industry standards.
