Weidmuller 1359030000

The S2C-SMT 3.50/16/90LF 3.2SN BK RL is a male header PCB plug-in connector designed for THT/THR solder connections. With a pitch of 3.50 mm and 16 poles, it accommodates various applications in electronic circuitry. The solder pin length is 3.2 mm, enabling secure and reliable connections.

This connector is compliant with UL 1059 standards, rated for voltages up to 150 V in use group B, and 50 V in use group C, with a maximum rated current of 10 A in both groups. It features a robust construction with an insulating material of LCP GF and a black finish, complying with fire safety standards including UL 94 V-0.

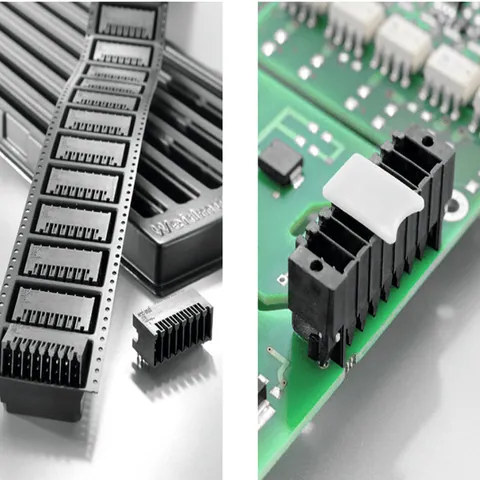

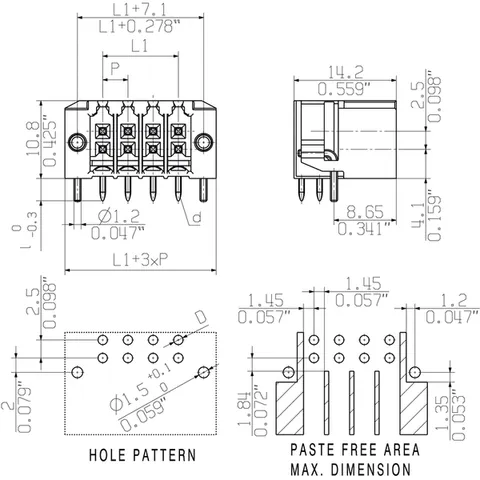

Dimensions of the connector include a width of 31.6 mm and a height of 14 mm, weighing 5.21 g. The operating temperature ranges from -50 °C to 120 °C, making it suitable for a variety of environments. The connector is designed for a 90° outgoing elbow and is touch-safe according to DIN VDE 0470, with a degree of protection rated at IP 20.

It is packaged in tape form, ensuring easy handling and storage. The product family is part of the OMNIMATE Signal - series B2C/S2C 3.50 - 2-row, confirming its compatibility with standard PCB layouts.
