Weidmuller 1441300000

The PCB plug-in connector, identified as RSV1,6 LB6 GR 3,2 SN, is designed for board connections with THT soldering. It features a 180° outgoing elbow and is suitable for various applications due to its robust specifications. The connector supports a rated voltage of up to 300 V and a rated current of 10 A as per UL 1059 standards.

Constructed from high-quality Wemid (PA) insulating material, this connector is colored pebble grey, conforming to RAL 7032. It has an excellent flammability rating of UL 94 V-0 and is suitable for operation within a temperature range of -50 °C to 100 °C, ensuring reliability under various environmental conditions.

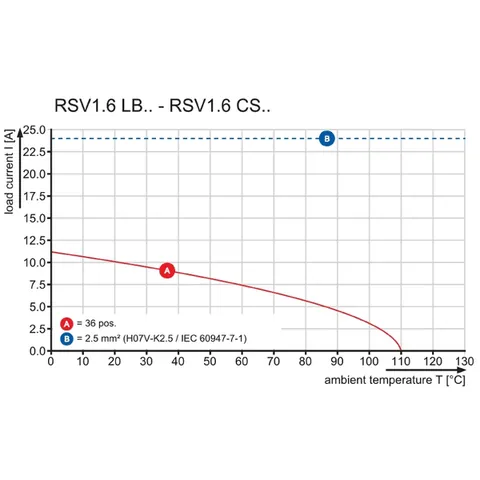

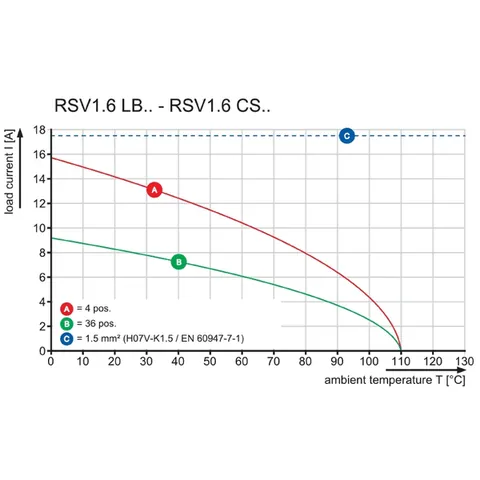

With a solder pin length of 3.2 mm and a pin series quantity of 2, this connector also meets IEC standards, demonstrating a maximum rated current of 14 A at 20 °C when used with the minimum number of poles. The device is designed for a net weight of 4.78 g and dimensions including a height of 14.3 mm, making it compact for PCB applications.

Approval certifications include CSA, EAC, and UR, reflecting compliance with international standards. This product is part of the OMNIMATE Signal series and is packaged in a box with dimensions 42 mm x 96 mm x 169 mm.
