Weidmuller 1446900000

This PCB plug-in connector is designed for reliable board connection with 36 poles arranged at a 180° angle. The THT solder connection ensures a secure fit, with a pin length of 3.2 mm and a 5.00 mm pitch. The RSV1,6 LSF36 GR 3,2 SN model is constructed from Wemid (PA) insulating material in pebble grey, compliant with stringent industry standards.

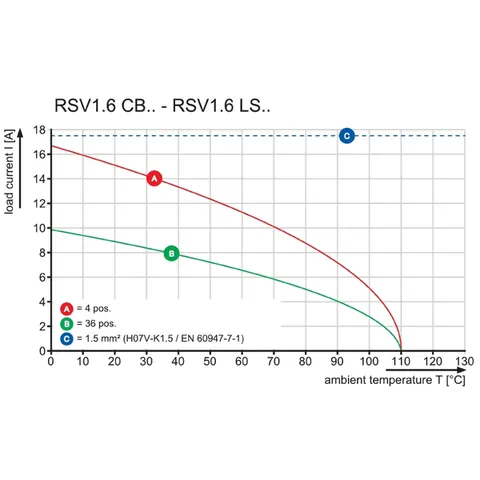

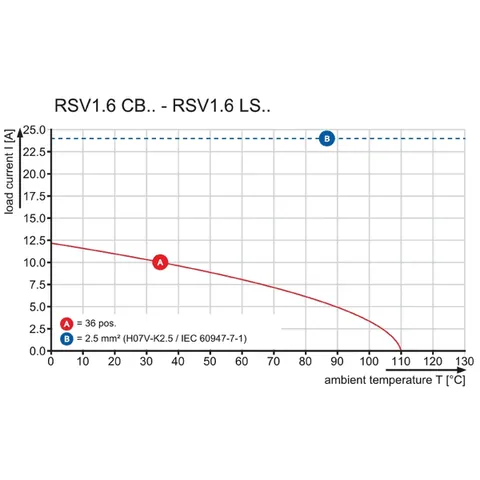

Operating within a temperature range of -50°C to 100°C, this connector is rated for a maximum current of 14 A at 20°C, making it suitable for various applications. Its rated voltage capabilities include 500 V for pollution degree II and 320 V for pollution degree III, ensuring versatility in different environments. Notably, it features a short-time withstand current resistance of 120 A for 1 second.

With a compact height of 15 mm and a net weight of 15.5 g, this connector is space-efficient. It is packaged in a box with dimensions of 42 mm in length, 70 mm in width, and 170 mm in height. The connector also meets several certifications, including CSA, EAC, and UR, with compliance to RoHS standards, ensuring adherence to environmental regulations.
