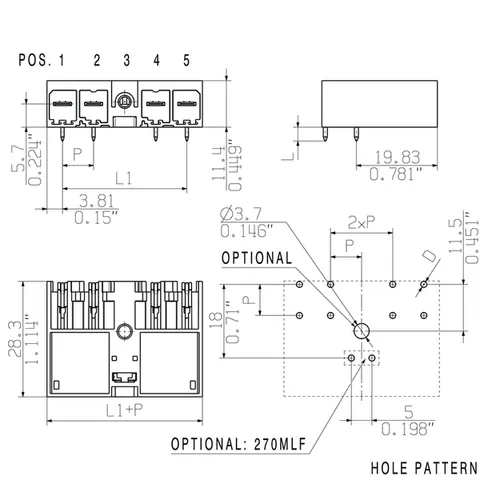

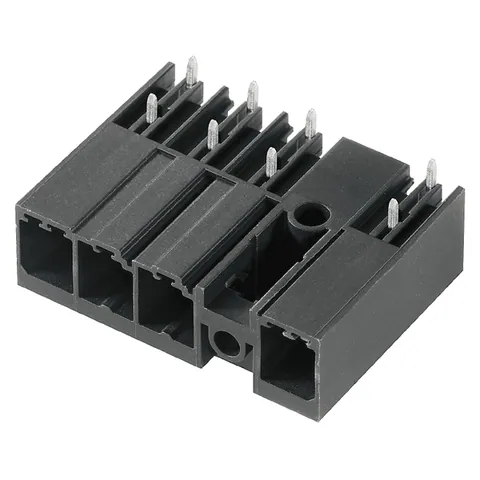

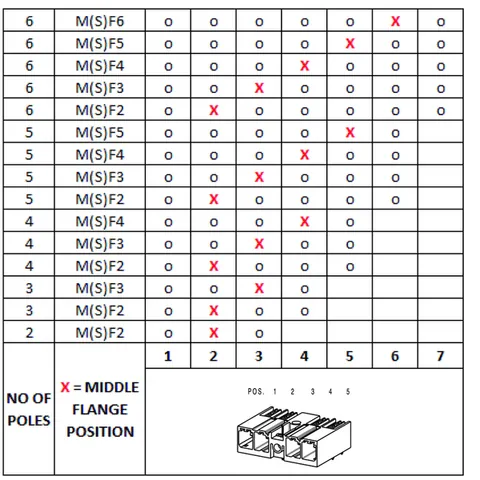

The SV 7.62HP/04/270MF4 3.5SN BK BX connector is engineered for PCB applications, utilizing a THT solder connection method. It is characterized by a 270° outgoing elbow and features a total of four poles with dual solder pins per pole. The solder pin length measures 3.5 mm, ensuring a reliable connection.

In terms of rated data, this connector supports a rated voltage of 600 V under Use Group D and a rated current of 40.5 A for Use Groups B and C, making it suitable for various industrial applications. The clearance distance is a minimum of 6.9 mm, while the creepage distance stands at 9.6 mm, complying with international standards such as IEC 60664-1.

The insulating material is made from PA GF, colored black and rated for a maximum operating temperature of 130 °C. With a Comparative Tracking Index (CTI) of ≥ 500 and flammability rated to UL 94 V-0, this connector demonstrates high resilience under challenging conditions. Storage conditions are defined between -25 °C and 55 °C with a maximum relative humidity of 80%.

This product is part of the OMNIMATE Power series and conforms to various safety standards, including CSA, cURus, and EAC certifications. The SV 7.62HP/04/270MF4 3.5SN BK BX connector is packaged in a box and is designed to meet IPC-A-610
