Weidmuller 1472690000

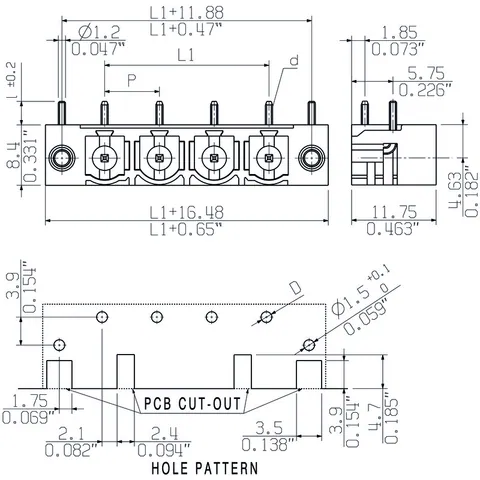

The 7.62 mm PCB plug-in connector is designed for board connections with through-hole technology (THT solder connection). It features a total of 10 poles and a solder pin length of 3.2 mm. The connector's outgoing elbow is oriented at 270°, allowing for efficient space management on circuit boards.

Constructed from PA GF insulating material in orange, this connector adheres to various international standards, including UL, IEC, and CSA. Its rated voltage across different use groups is as follows: 300 V for use groups B and C, and 600 V for use group D. The rated current is 20 A for both groups B and C, and 5 A for group D. The connector also meets the requirements for clearance and creepage distances, with a minimum of 6.5 mm and 11.2 mm respectively, ensuring safety in operation.

With a compact height of 11.6 mm and a depth of 11.75 mm, this connector has a net weight of 6.5 g. It is designed to operate within a temperature range of -50 °C to 100 °C, and can withstand relative humidity levels of up to 80% during storage. The product family it belongs to is OMNIMATE Power - series BL/SL 7.62HP, and it can be coded for added functionality. This connector also complies with touch-safe protection standards according to DIN VDE.
