Weidmuller 1479810000

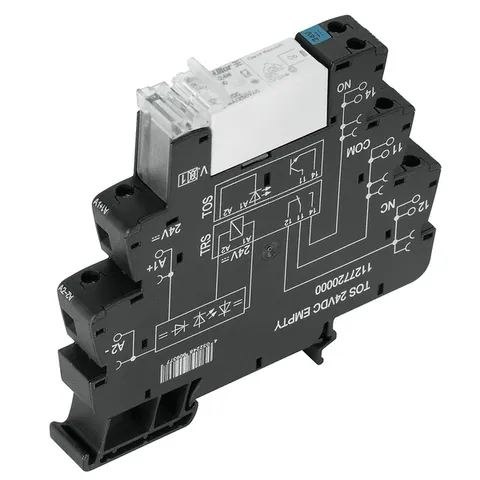

The Relay Module operates at a rated control voltage of 24 V DC ± 20% and features a single normally open (NO) contact. It utilizes AgSnO2 + W material for the contact, ensuring durability with a mechanical service life of up to 5 million switching cycles.

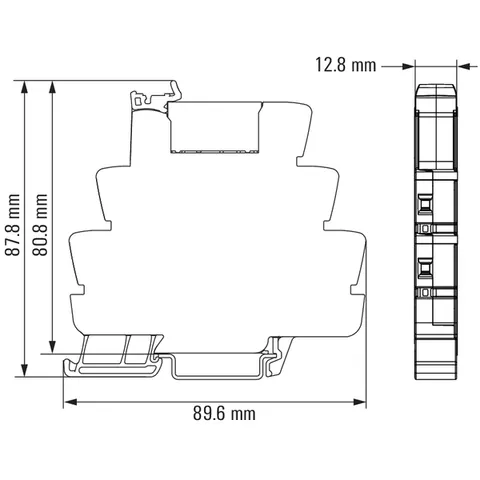

With dimensions of 12.8 mm in width, 89.6 mm in height, and 87.8 mm in depth, it weighs 56 g. The module employs a screw connection for wiring, supporting a range of wire sizes from 0.14 mm² to 2.5 mm² (AWG 26 to AWG 14). The maximum tightening torque is set at 0.4 Nm.

In terms of environmental compliance, the product adheres to CE, cULus, DNV GL, and EAC standards and is ROHS compliant. It is rated for operational temperatures between -40 °C and 60 °C and has a pollution severity level of 2. The relay can handle a rated switching voltage of 250 V AC and a maximum continuous current of 16 A, with an inrush current capability of 165 A for 20 ms and 800 A for 200 µs. The dielectric strength between input and output is rated at 1.2 kVeff for 5 seconds, ensuring reliable performance.

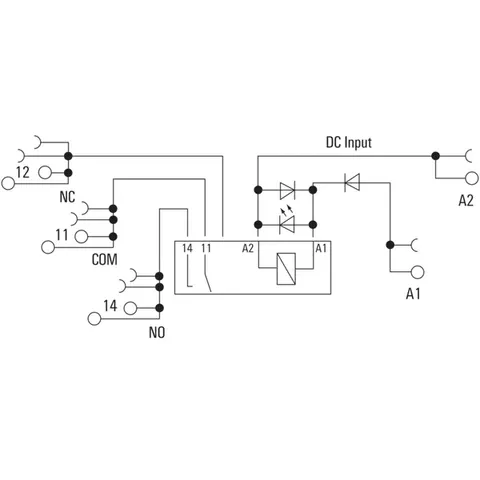

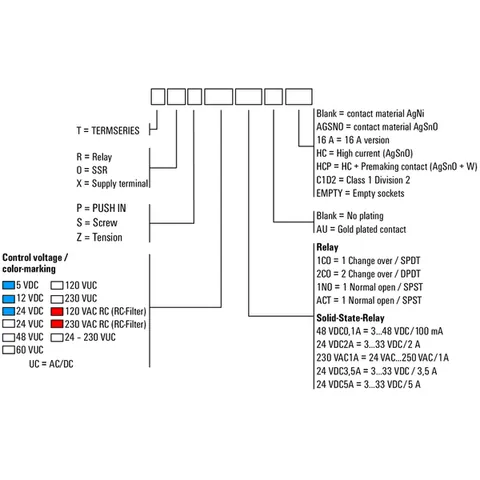

The relay also includes protective features such as a free-wheeling diode and reverse polarity protection. It is classified under ETIM 6.0 and 7.0 as EC001437, and its operational reliability is supported by a green LED status indicator. The Designation Code for this product is E141197.
