Weidmuller 1543290000

The SVD 7.62HP/04/270G 3.2SN BK BX is a male header PCB plug-in connector designed for a 7.62 mm pitch. It supports THT solder connections and features a closed side configuration with four poles. The solder pin length is 3.2 mm, ensuring a secure fit for PCB applications.

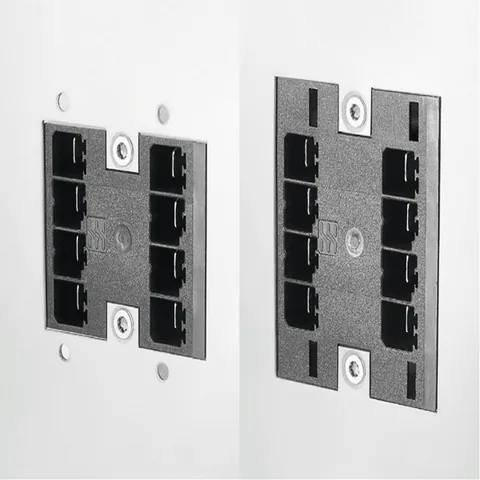

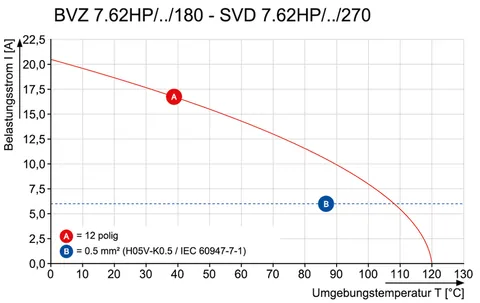

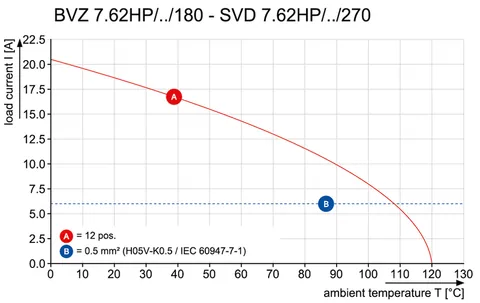

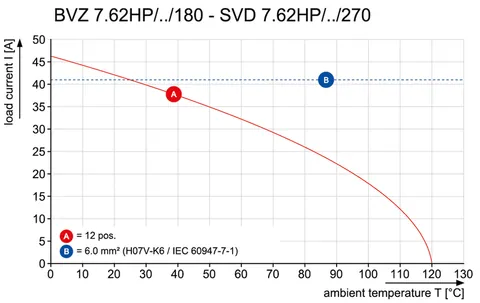

This connector complies with UL 1059 and is rated for a maximum voltage of 600 V and a rated current of up to 30 A, depending on the usage group. With a clearance of 6.9 mm and a creepage distance of 9.6 mm, it meets the safety standards outlined in IEC 60664-1 and IEC 61984.

Constructed from PA GF insulating material, the connector exhibits a flammability rating of V-0 and can operate within a temperature range of -50 °C to 120 °C. Its robust design includes a touch-safe feature, adhering to DIN VDE 57 106 and IP 20 standards.

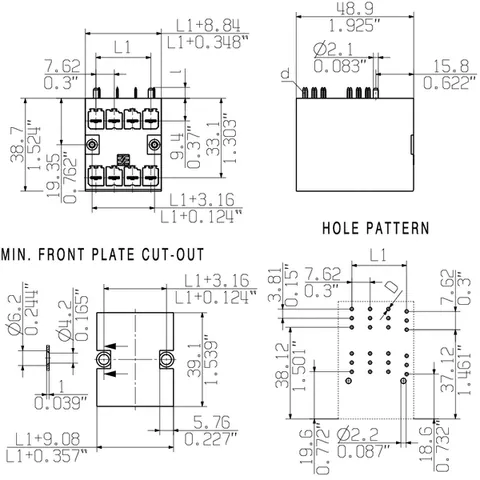

For assembly, it comprises two rows with three solder pins per pole, accommodating a total of 12 solder connections. The connector's dimensions include a height of 41.9 mm and a depth of 48.9 mm, with a net weight of 24.2 g.

Approval under cURus ensures compliance with international safety standards, while the connector's construction allows for coding and supports up to 25 plugging cycles.
