Weidmuller 1725650000

This product is a male header PCB plug-in connector designed for a THT solder connection. It features a 5.08 mm pitch and is configured with 4 poles positioned at a 180° angle. The solder pin length measures 3.2 mm and is tinned for enhanced conductivity.

Rated data according to IEC standards indicates a rated voltage of 400 V for surge voltage class II/2 and a rated current of 14 A at 20°C for a minimum number of poles. The insulating material is made of PBT, colored orange, and has a Comparative Tracking Index (CTI) of ≥ 200. It has an insulation strength of ≥ 108 Ω and complies with the UL 94 flammability rating of V-0.

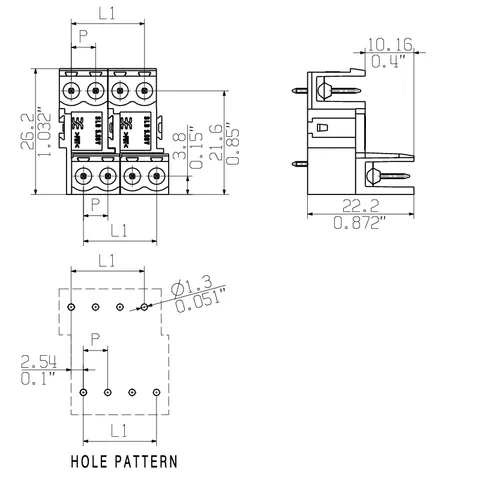

Dimensionally, the connector width is 12.7 mm (0.5 inches), height is 25.4 mm (1 inch), and depth is 26.2 mm (1.031 inches). It can operate within a temperature range of -50°C to 100°C. The packaging is provided in a box with dimensions of 35 mm in length, 130 mm in width, and 150 mm in height.

This connector, part of the OMNIMATE Signal product family, has a maximum rated current of 10 A as per UL 1059 standards. It is suitable for various applications requiring reliable electrical connections.
