Weidmuller 1728910000

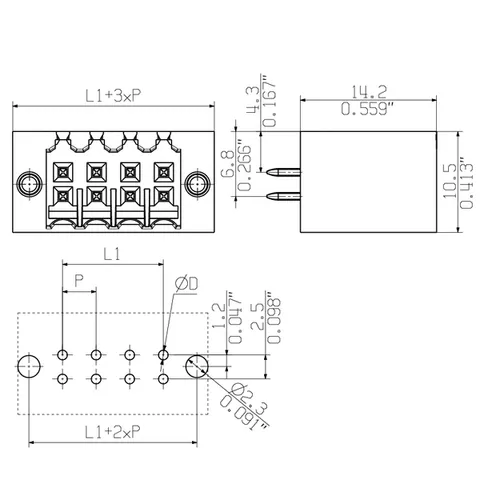

The PCB plug-in connector is designed with a male header and features a closed side for added connection integrity. It utilizes a THT solder connection with a pitch of 3.50 mm, allowing for a total of 30 poles arranged at a 180° angle. The solder pin length is 3.5 mm and is tinned, ensuring reliable electrical contact.

This connector complies with UL 1059 standards, with a rated voltage of 150 V for Use group B and 50 V for Use group C. It can handle a maximum rated current of 10 A under both use groups. The connector has been tested according to IEC standards, confirming its suitability for various applications.

Constructed from durable PBT insulating material in an orange color, the connector exhibits a comparative tracking index (CTI) of ≥ 200 and maintains insulation strength of ≥ 108 Ω. The UL 94 flammability rating of V-0 indicates its resistance to fire. Operating temperatures range from -50 °C to 100 °C, with a storage temperature range of -25 °C to 55 °C.

The product family is part of the OMNIMATE Signal - series B2L/S2L 3.50, specifically designed for board connections with a touch-safe protection according to DIN VDE standards. The connector can withstand up to 25 plugging cycles, with maximum plugging and pulling forces of 5 N and 4 N, respectively.
