Weidmuller 1728990000

The S2L 3.50/14/180G 3.5SN BK BX is a PCB plug-in connector characterized by a male header configuration and a closed side. It employs a Through-Hole Technology (THT) solder connection, with a pitch of 3.50 mm and an angle of 180°. This connector accommodates 14 poles, each with a solder pin length of 3.5 mm, ensuring stable electrical connections.

This connector complies with various standards, including IEC 60664-1 and IEC 61984, and offers a rated voltage of 150 V under UL 1059 use group B, and a rated current of 10 A for the same group. For use group C, it supports a rated voltage of 50 V and a rated current of 10 A. Furthermore, the rated impulse voltage stands at 2.5 kV across several pollution degrees.

Constructed from PBT insulating material, it features a black finish in accordance with RAL 9011. Its comparative tracking index (CTI) is ≥ 200, and it exhibits an insulation strength of ≥ 108 Ω. The contact pins are made of copper alloy with a tinned surface, and the connector demonstrates a UL 94 flammability rating of V-0.

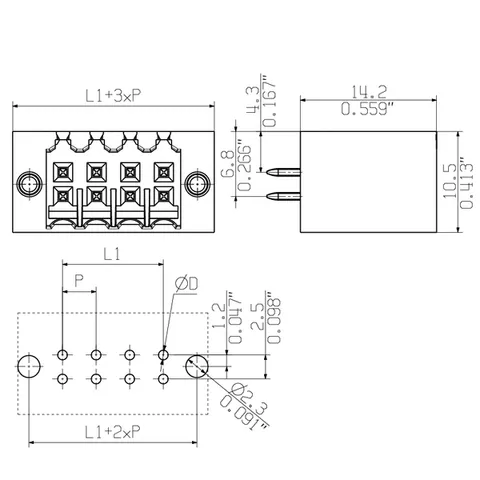

Dimensions include a width of 25.9 mm, a height of 17.7 mm, and a depth of 10.5 mm, with a net weight of 2.94 g. The operating temperature range is between -50 °C and 100 °C, while the storage temperature can vary from -25 °C to 55 °C. The unit is packaged in a box with specific dimensions for handling.

Additional characteristics include a touch-safe protection classification of IP 10, allowing for coded connections and a maximum plugging cycle of 25...
