Weidmuller 1729480000

The S2L 3.50/16/180F 3.5SN OR BX is a male header plug-in connector designed for PCB applications. It employs a THT solder connection and features a pitch of 3.5 mm. With 16 poles and a 180° outgoing elbow, this connector is suitable for various electronic configurations.

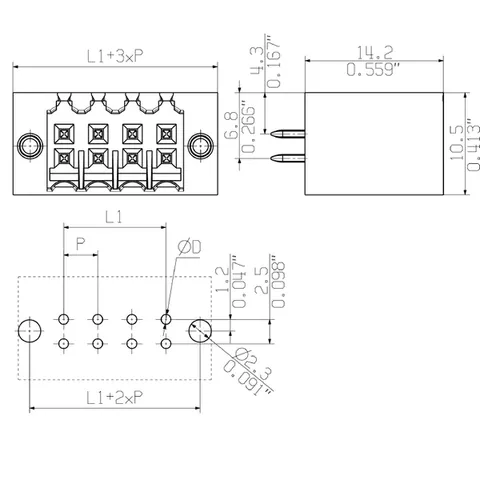

Constructed from PBT insulating material with a distinct orange color, this component meets stringent safety and performance standards including UL 1059 and IEC 60664-1. It is rated for a voltage of 150 V and a current of 10 A under specific conditions, ensuring reliable operation in demanding environments. The connector's dimensions measure 35 mm in width, 17.7 mm in height, and 10.5 mm in depth, resulting in a net weight of 4.73 g.

With a minimum operating temperature of -50 °C and a maximum of 100 °C, it is engineered to perform under a wide range of thermal conditions. The component also showcases impressive insulation strength and flammability ratings, contributing to its durability and safety in use. Touch-safe protection is guaranteed according to DIN VDE standards, ensuring compliance with regulatory requirements.

This connector is part of the OMNIMATE Signal series, specifically designed for board connections, and is packaged in a box for secure handling. For customized applications, additional colors and gold-plated contact surfaces are available upon request. The product is compliant with IPC-A-610 Class 2 standards, guaranteeing its quality and reliability.
