The S2L 3.50/24/180F 3.5SN BK BX is designed as a PCB plug-in connector featuring a male header, with a pitch of 3.50 mm and a THT solder connection. This connector supports 24 poles arranged at a 180° angle, facilitating efficient PCB integration.

Constructed from PBT insulating material, the connector exhibits a black color akin to RAL 9011. It is rated for a maximum voltage of 150 V under UL 1059, with an operational current of 10 A for both usage groups B and C. The connector is compliant with various standards, including IEC 60664-1 and IEC 61984, ensuring reliable performance in diverse applications.

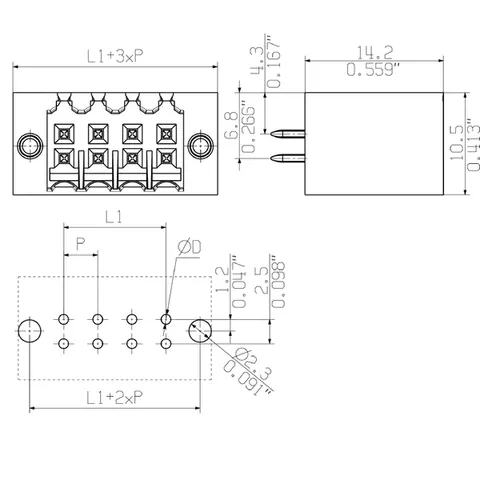

Dimensions include a width of 49 mm, a height of 17.7 mm, and a depth of 10.5 mm, with a net weight of 7.65 g. It operates efficiently within a temperature range of -50 °C to 100 °C and has a maximum relative humidity tolerance of 80% during storage. The rated impulse voltage for pollution degree II/2 is 2.5 kV, enhancing its robustness in challenging environments.

Additional features include a solder pin length of 3.5 mm and a touch-safe protection rating of IP 10 according to DIN standards. The connector provides a touch-safe design, ensuring compliance with safety standards. For enhanced mechanical support, it is recommended to utilize an additional cable gland with fastening screws.

This product is part of the OMNIMATE Signal series and classified under the ETIM 6.0 standard as EC002637, with further classifications under EClass and UNSPSC. The product has been...
