Weidmuller 1768970000

The LM2N 5.08/28/90 3.5SN OR BX is designed for printed circuit board applications, offering 28 poles with a 5.08 mm pitch and a 90° conductor outlet direction. The terminal features a clamping yoke connection that accommodates wire cross-sections up to 2.5 mm², making it suitable for various electrical connections.

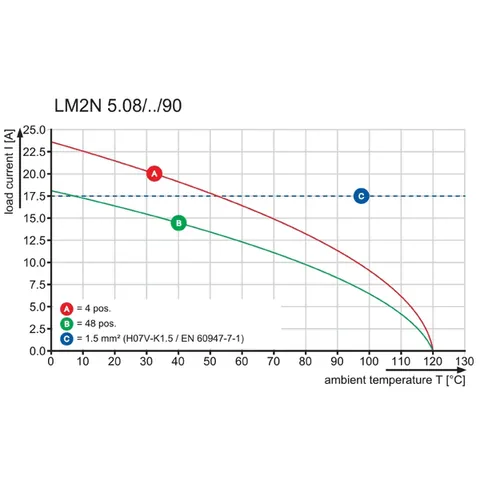

Constructed with Wemid (PA) insulating material and colored orange, this terminal complies with international standards including IEC 60664-1 and IEC 61984. It has a rated voltage of 300 V and supports a rated current of up to 15 A under specified conditions. This product fulfills rigorous safety and performance requirements, as indicated by its certifications from CSA, cURus, and EAC.

With a compact design measuring 74.66 mm in width, 28.7 mm in height, and 21.6 mm in depth, it is suitable for high-density applications. The terminal operates effectively within a temperature range of -50 °C to 120 °C and features a storage temperature range of -25 °C to 55 °C. The insulation strength exceeds 108 Ω, ensuring reliable electrical isolation.

Additional features include a volume resistance of 1.20 mΩ and compliance with touch-safe protection standards according to DIN VDE 0470. The product is packaged in a box for convenient handling and storage, aligning with the specifications outlined in the approval certificates.
