Weidmuller 1774972001

The PCB plug-in connector is designed for board connections with a pitch of 5.08 mm. It features a male header configuration and supports a total of 23 poles at a 90° orientation, optimizing space and connectivity in electronic assemblies.

The solder pin length measures 1.5 mm, with tinned surfaces ensuring reliable electrical contact. Constructed from LCP GF insulating material, the connector is characterized by a black color, with a Comparative Tracking Index (CTI) of ≥ 175, making it suitable for environments requiring high insulation resistance.

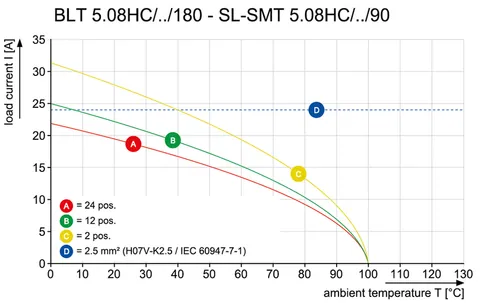

Compliance with various international standards including IEC 60664-1 and IEC 61984 confirms its robustness in applications facing high voltage conditions. Rated for a maximum current of 18.5 A at 300 V (Use group B), this component also supports an operational temperature range from -50 °C to 100 °C, offering versatility across different environmental conditions.

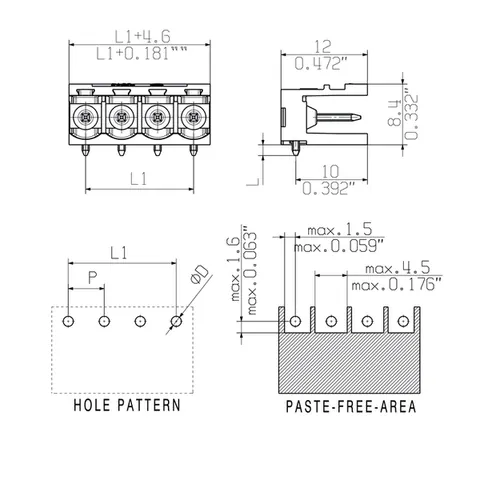

With a net weight of 8.5 g and compact dimensions of 116.84 mm x 10 mm x 12 mm, it can be easily integrated into various assemblies. The connector is packaged in a box with specified dimensions of 30 mm x 130 mm x 150 mm.

For further customization, additional colors and gold-plated contact surfaces are available upon request, enhancing its adaptability to specific applications.
