Weidmuller 1775012001

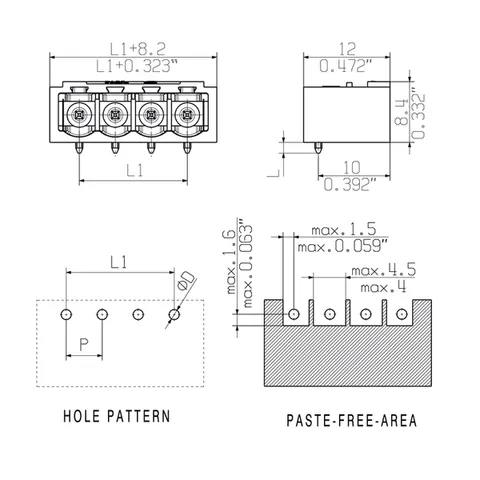

The 5.08 mm PCB plug-in connector is designed for reliable electrical connections with its male header configuration. With a total of three poles, this component utilizes a 90° elbow for efficient space management on printed circuit boards. The solder pin length measures 1.5 mm, ensuring compatibility with various mounting requirements.

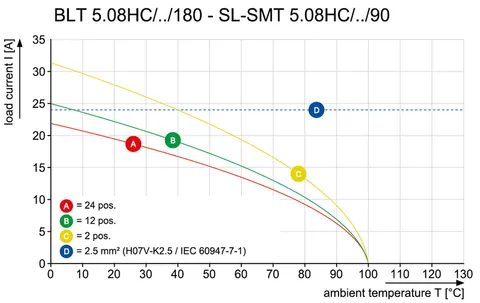

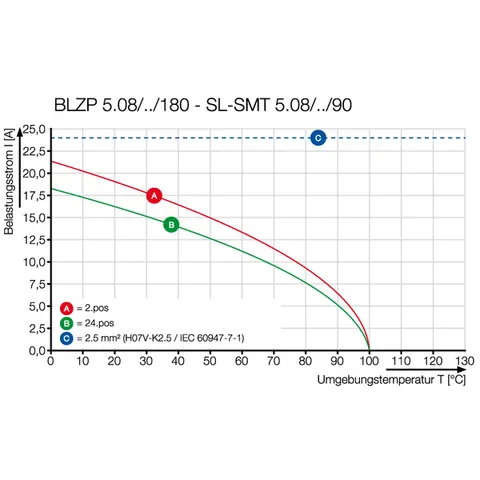

This connector meets stringent approval standards, including UL 1059 and CSA certifications, with a rated voltage of 300 V and a rated current of 18.5 A under the relevant scenarios. It is constructed from LCP GF insulating material with a black finish, classified under insulation group IIIa, providing high resistance against tracking.

With a robust design that includes a Comparative Tracking Index (CTI) of ≥ 175 and an insulation strength of ≥ 108 Ω, it ensures dependable performance in diverse environments. The operational temperature range spans from -50 °C to 100 °C, accommodating various applications.

Additional features include gold-plated contact surfaces available on request, with a maximum plugging force of 9 N and a pulling force of 7 N per pole. This connector is part of the OMNIMATE Signal series, specifically designed to facilitate board connections with a pitch of 5.08 mm, making it suitable for compact electronic assemblies.
