Weidmuller 1780090000

This 5.08 mm PCB plug-in connector is designed with a male header configuration and offers 16 poles at a 90° angle. The solder pin length measures 3.2 mm, ensuring secure connections through THT/THR soldering methods. With a net weight of 6.78 g, this component is packaged in a box.

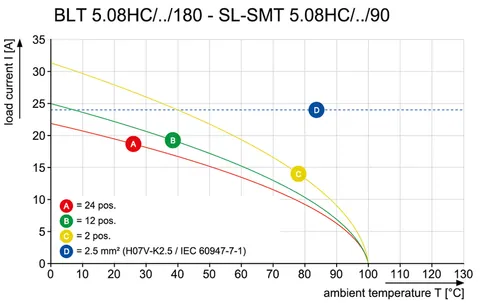

The connector meets rigorous standards, boasting a rated voltage of 300 V and a rated current of up to 18.5 A under UL 1059 guidelines. It is tested in accordance with IEC standards, with surge voltage ratings reaching up to 400 V, suitable for use in pollution degree II and III environments. The insulating material is LCP GF, characterized by its black color, and it has a Comparative Tracking Index (CTI) of ≥ 175. The device maintains operational capability within a temperature range from -50 °C to 100 °C.

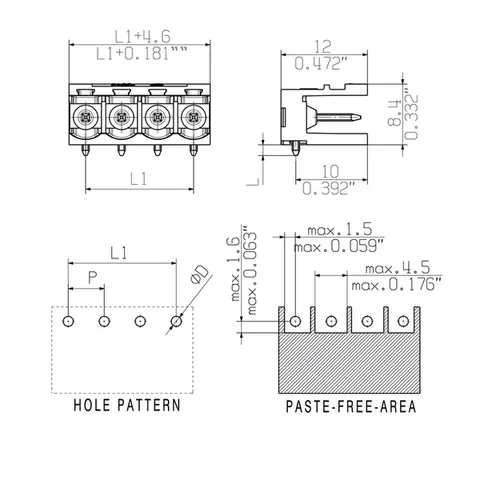

With a pitch of 5.08 mm and a standard length of 76.2 mm, this connector is designed for ease of installation on PCBs, allowing for a maximum plugging force of 9 N and a pulling force of 7 N per pole. Compliance with various approvals, including CSA, EAC, and UR, ensures its reliability across diverse applications.
