Weidmuller 1796480000

The PCB plug-in connector is designed with a male header and supports THT/THR solder connections. It has a 5.00 mm pitch, with a 180° outgoing elbow and accommodates 2 poles. The solder pins are 1.5 mm in length and are tinned for enhanced connectivity.

This component adheres to multiple standards, including IEC 60664-1 and IEC 61984, ensuring reliable performance under various conditions. The rated current for this connector can reach up to 27.5 A at 20°C under specific configurations, while the rated voltage can go up to 400 V, catering to various applications.

Constructed from LCP GF insulating material, this connector exhibits a high comparative tracking index (CTI) of ≥ 175 and is rated for operational temperatures ranging from -50 °C to 100 °C. It also features robust moisture and flammability ratings, making it suitable for diverse environments.

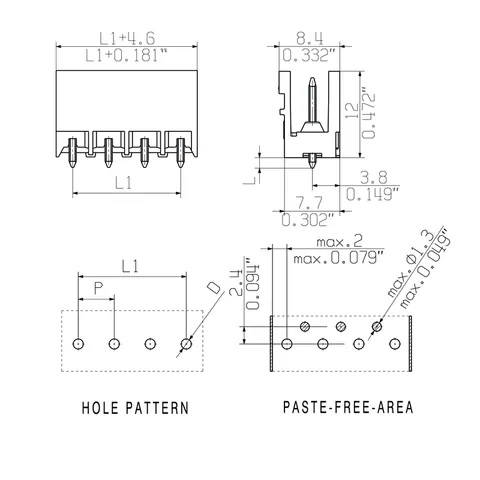

With a compact design, the connector measures 10 mm in width, 13.5 mm in height, and 8.5 mm in depth, weighing only 0.9 g. It comes packaged in a box with specific dimensions of 42 mm in length, 70 mm in width, and 168 mm in height, ensuring safe transport and storage.

Approval certifications include CSA, EAC, and UR, with compliance to ROHS standards, confirming its suitability for industrial applications.
