Weidmuller 1797960000

The connector features a pitch of 5.00 mm and accommodates 5 poles with an outgoing elbow at 180°. Each pole has one solder pin measuring 1.5 mm in length. It is designed for THT/THR solder connections, ensuring robust integration on printed circuit boards. The component is compliant with various standards, including IEC 60664-1 and IEC 61984, and has a rated voltage of 300 V for both use groups B and D under UL 1059.

Constructed with LCP GF insulating material, the connector is black in color and exhibits a Comparative Tracking Index (CTI) of ≥ 175, suitable for applications requiring reliable insulation. The operating temperature range extends from -50 °C to 100 °C, making it versatile for different environments. It also features tinned CuMg contact surfaces to ensure optimal conductivity.

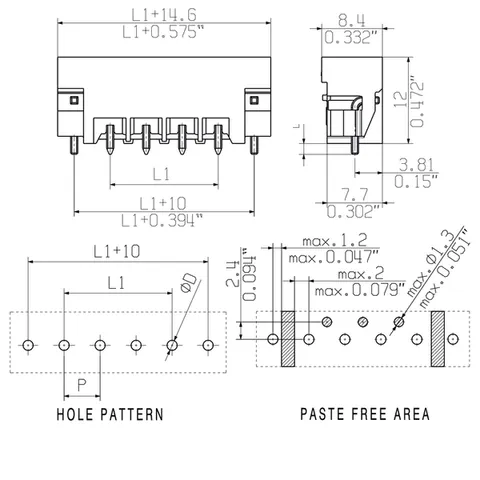

With a net weight of 3 g and dimensions of 34.8 mm in width, 13.5 mm in height, and 8.5 mm in depth, this connector is designed for efficient space utilization. The product family is part of the OMNIMATE Signal series, and it can withstand a maximum plugging force of 7 N and a pulling force of 5.5 N per pole. For further details, refer to the designation code provided.
