Weidmuller 1813710000

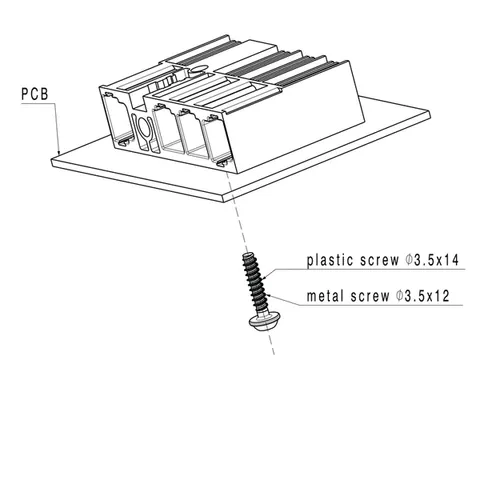

This PCB plug-in connector is constructed with a male header and a clip-on flange, facilitating through-hole technology (THT) solder connections. With a pitch of 10.16 mm, it accommodates 8 poles configured at a 180° angle. The solder pins measure 3.5 mm in length and are silver-plated, ensuring reliable electrical contact.

Compliant with UL 1059 standards, the connector supports a rated voltage of up to 600 V and a rated current of 60 A for specific use groups. Its design incorporates a minimum clearance distance of 8.9 mm and a minimum creepage distance of 10.5 mm, enhancing safety in various applications. The product is constructed from PBT GF material, with a black finish, and boasts a UL 94 flammability rating of V-0, indicating its suitability for demanding environments.

Operating over a temperature range of -50 °C to 120 °C, this connector is designed to perform reliably in extreme conditions. It features touch-safe protection according to DIN VDE standards and is rated for a maximum of 50 plugging cycles. The product's dimensions allow for easy integration into various PCB layouts, making it ideal for industrial applications.
