Weidmuller 1826130000

The LSF-SMT 7.50/02/180 3.5SN BK TU is a printed circuit board terminal designed for reliable electrical connections. With a pitch of 7.5 mm and a 180° conductor outlet direction, this terminal is suitable for various PCB applications, utilizing a PUSH IN wire connection method.

It handles a maximum clamping range of 1.5 mm², making it compatible with a wide range of wire sizes from AWG 28 to AWG 14. The terminal's construction includes a black insulating material with a rated voltage of 300 V for use group B and 150 V for use group C, ensuring robust performance under specified conditions.

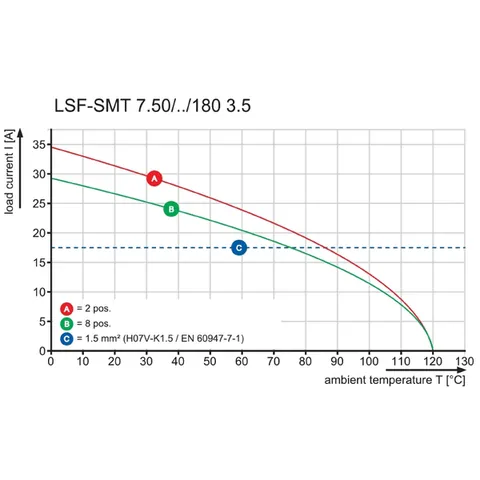

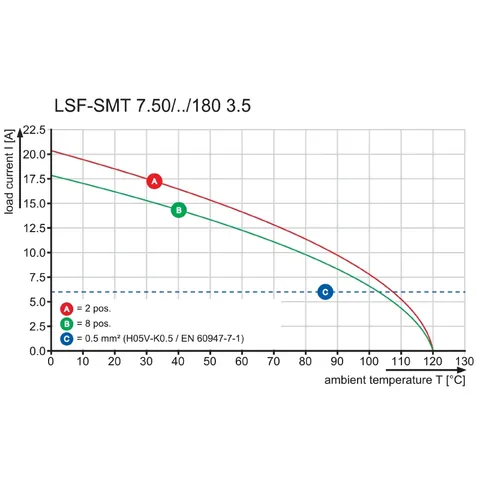

This component is compliant with IEC standards and has a rated current of up to 17.5 A, depending on the number of poles and temperature conditions. Its insulating strength is ≥ 108 Ω, contributing to its safe operation across a broad temperature range from -50 °C to 120 °C.

Designed with a solder pin length of 3.5 mm, it provides ease of installation through THT/THR solder connections. The terminal also meets various international approvals, including cURus and VDE, and adheres to environmental standards such as ROHS.

For further specifications, the terminal is packaged in tubes and features a net weight of 2.085 g, making it convenient for bulk handling and installation.
