Weidmuller 1829040000

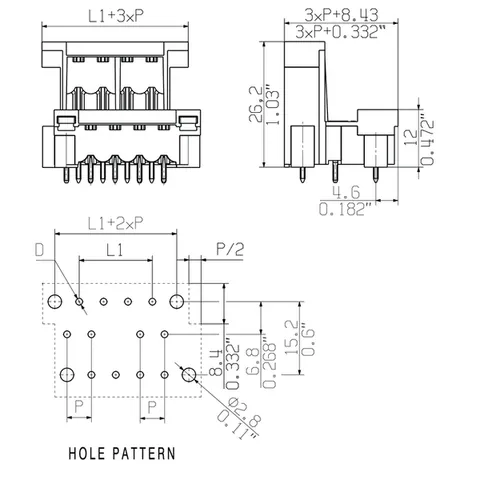

The SLDV-THR 5.08/10/180FLF 3.2SN BK BX is a PCB plug-in connector characterized by its male header and THT/THR solder connection. With a pitch of 5.08 mm and a total of 10 poles, this connector is engineered for precise applications. The solder pin length measures 3.2 mm and is tin-plated for optimal conductivity.

This connector complies with various standards, including IEC 60664-1 and IEC 61984, offering a rated current of up to 10 A under specified conditions. It supports a rated voltage of 300 V for use groups B and D as per UL 1059, and features a rated impulse voltage of 4 kV, making it suitable for challenging electrical environments.

Constructed from LCP GF insulating material, the connector exhibits a Comparative Tracking Index (CTI) of ≥ 175 and is rated with a UL 94 flammability classification of V-0. Its operating temperature can reach up to 100 °C, ensuring reliable performance in various conditions. The connector is designed for a maximum pulling force of 7.5 N per pole and can endure 25 plugging cycles.

Additionally, it features touch-safe protection according to DIN VDE standards, ensuring safe operation even when handling. The product is packaged in a box and is part of the OMNIMATE Signal product family, designated under the code SLDV-THR 5.08/10/180FLF 3.2SN BK BX.
