Weidmuller 1837680000

This SL-SMT 5.08HC/07/90F 3.2SN BK BX connector is designed for PCB applications, characterized by a male header with a flange and a pitch of 5.08 mm. It accommodates 7 poles and features a solder pin length of 3.2 mm, suitable for THT/THR solder connections at a 90° angle.

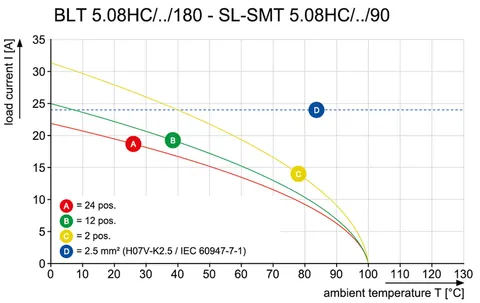

Its rated voltage for both UL and CSA standards is 300 V, and it can handle a rated current of up to 18.5 A, depending on the usage group. The connector is compliant with IEC standards and exhibits a rated impulse voltage of 4 kV, ensuring robust performance in various applications.

Constructed from LCP GF insulating material, the connector is black in color and possesses a Comparative Tracking Index (CTI) of ≥ 175. It is designed to operate within a temperature range of -50 °C to 100 °C and can withstand a maximum relative humidity of 80% during storage.

Approval certifications include CSA, EAC, and UR, with adherence to RoHS standards. The component dimensions are as follows: width of 45.72 mm, height of 11.7 mm, and depth of 12 mm, with a net weight of 4.3 g.

This product belongs to the OMNIMATE Signal series, designed to meet IPC-A-610
