Weidmuller 1838400000

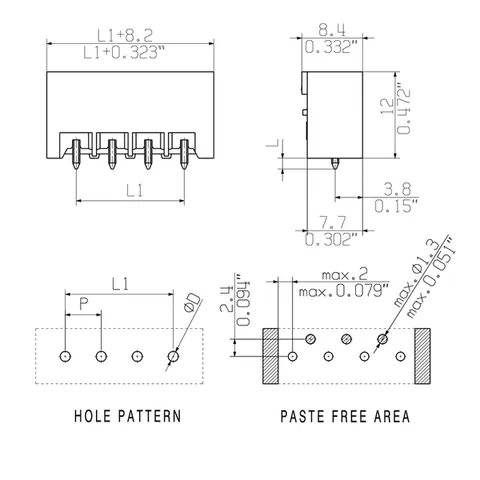

The 5.08 mm male header PCB plug-in connector is engineered for THT/THR solder connections, featuring a unique design with an outgoing elbow at 180°. The connector accommodates 21 poles, each with a solder pin length of 3.2 mm, ensuring reliable connections in various applications.

Constructed from LCP GF insulating material, this connector is rated for a maximum operating temperature of 100 °C and a minimum of -50 °C. It exhibits excellent insulation properties with a Comparative Tracking Index (CTI) of ≥ 175 and a minimum insulation strength of ≥ 108 Ω. The connector meets UL 94 flammability rating V-0, making it suitable for stringent environmental conditions.

In terms of electrical ratings, the connector supports a rated voltage of 300 V and a rated current of 18.5 A under specific conditions, complying with UL 1059 and IEC standards. The design facilitates a maximum plugging force of 9 N per pole and a pulling force of 7 N per pole, ensuring secure connections while maintaining ease of use. The product family for this connector is OMNIMATE Signal - series BL/SL 5.08, and it is packaged in a box for convenient storage.

Approval certifications include CSA and UR, confirming its reliability in various industrial applications. For further details on the approval values, please refer to the relevant certification documents.
