Weidmuller 1841290000

The PCB plug-in connector is designed for efficient connectivity with a 5.00 mm pitch and 15 poles. It features a closed side male header configuration and supports THT/THR solder connections. With a solder pin length of 3.2 mm, this connector ensures reliable electrical connections.

In terms of rated specifications, it complies with UL 1059 standards, supporting a maximum rated voltage of 300 V and a rated current of 18.5 A for group B. Additionally, under IEC standards, it accommodates a rated voltage of up to 400 V for pollution degree II, with an impulse voltage rating of 4 kV.

Constructed from LCP GF insulating material, it possesses a Comparative Tracking Index (CTI) of ≥ 175 and meets a UL 94 flammability rating of V-0. The connector is suitable for a broad operating temperature range, from -50 °C to 100 °C, and features tinned CuMg contacts to ensure optimal conductivity.

For installation, the connector is designed to withstand up to 25 plugging cycles and provides a maximum pulling force of 5.5 N per pole. The product aligns with various industry standards including CSA and EAC, making it a versatile component for PCB applications.

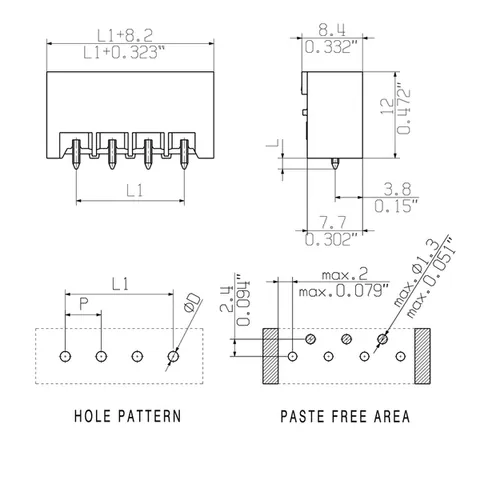

Dimensions include a width of 78.2 mm, height of 15.2 mm, and a depth of 8.5 mm, with a net weight of 6.341 g. The product is packaged in a box with precise dimensions for efficient storage and handling.
