Weidmuller 1862610000

This PCB plug-in connector is designed for reliable board connection with a pitch of 3.81 mm. The male header configuration supports a total of 6 poles and features a 90° elbow for efficient installation. The solder pin length of 1.5 mm ensures a secure solder joint, with a tolerance of 0 / -0.02 mm. This component is compatible with THT/THR solder connections and is packaged in a box for protection.

Rated for a maximum voltage of 300 V and a current of 11 A, this connector meets UL 1059 and CSA standards, ensuring compliance with industry regulations. It has been tested according to IEC 60664-1 and IEC 61984, with an impulse voltage rating of 2.5 kV for surge voltage class II/2. The device features a robust insulating material made from LCP GF, with a comparative tracking index (CTI) of ≥ 175, providing excellent electrical insulation.

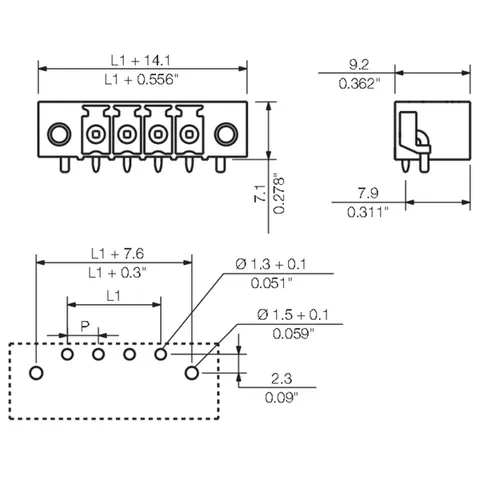

With a compact footprint of 33.15 mm in width and 9.2 mm in depth, this connector maintains a low profile, making it suitable for space-constrained applications. Operating temperature ranges from -50 °C to 120 °C, allowing for versatility in diverse environmental conditions. The connector is also designed for a maximum of 25 plugging cycles, ensuring durability in repeated use.

Approvals include CSA, cURus, and EAC, confirming its adherence to international safety and performance standards. The unit is designed to be touch-safe according to DIN VDE standards, making it suitable for various industrial applications.
