Weidmuller 1874970000

The 3.50 mm printed circuit board terminal accommodates up to 12 poles with a 90° conductor outlet direction, making it suitable for space-constrained applications. It utilizes a PUSH IN connection method and is designed for THT/THR soldering onto PCB.

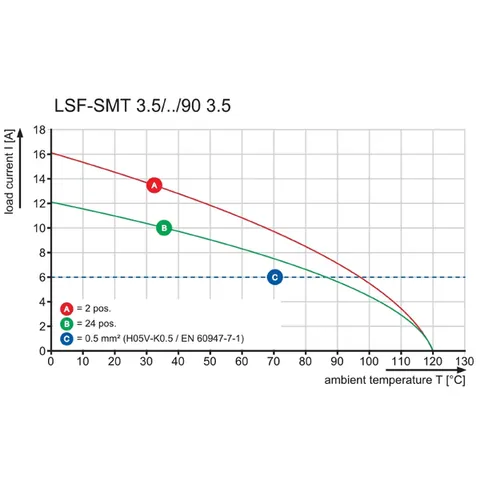

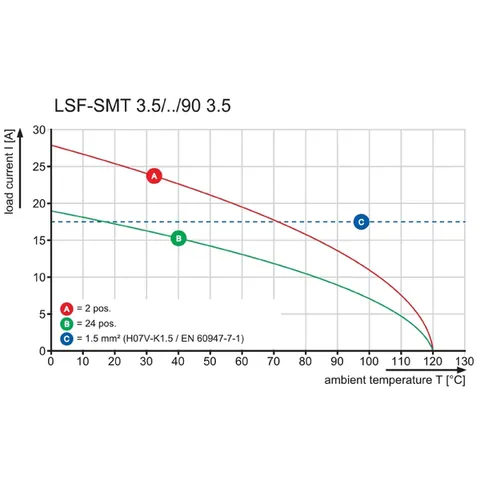

With a maximum clamping range of 1.5 mm², this terminal supports wire cross-sections from AWG 28 to AWG 14. The rated current varies with temperature and number of poles, reaching up to 17.5 A at 20°C for minimal poles. The terminal is constructed from LCP GF with a black insulating material and features a copper alloy contact material.

Rated for a maximum voltage of 300 V (as per UL 1059 and CSA standards), it also meets several international certifications including cURus, CSA, and VDE. The terminal has an insulation strength exceeding 108 Ω and a Comparative Tracking Index (CTI) greater than or equal to 175. The operational temperature range is extensive, from -50°C to 120°C, allowing for versatile applications in various environments.

Additional specifications include a net weight of 6.14 g and dimensions of 42.7 mm in width, 11.15 mm in height, and 14.75 mm in depth. The terminal is packaged on tape for convenient handling and installation.
