Weidmuller 1885920000

The LSF-SMT 3.81/06/135 3.5SN BK TU is designed for printed circuit board applications, offering a pitch of 3.81 mm and a maximum clamping range of 1.5 mm². This terminal block supports six poles with a solder pin length of 3.5 mm, ensuring reliable connections in various electronic setups.

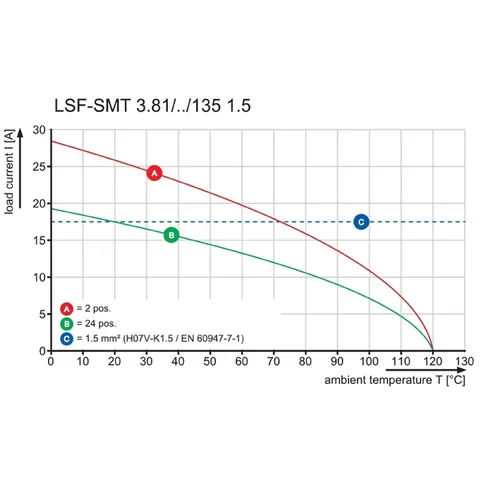

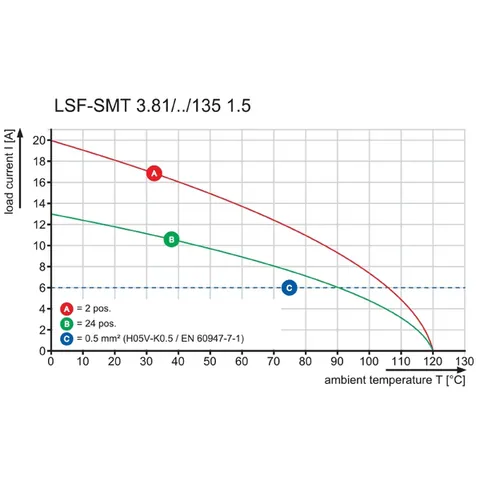

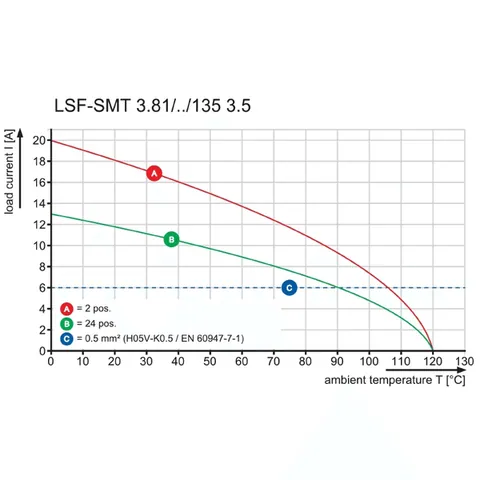

Rated for a maximum voltage of 300 V and a current capacity of up to 12 A (depending on application), this component adheres to industry standards such as UL 1059 and IEC 60664-1, making it suitable for diverse electrical environments. The operating temperature range extends from -50 °C to 120 °C, ensuring functionality across a wide spectrum of conditions.

Constructed from LCP GF insulating material, the terminal block is black in color, providing durability and resistance to environmental factors. The product complies with multiple certifications, including CSA and cURus, ensuring its reliability and safety in electrical applications.

With a compact size of 23.25 mm in width and 16.4 mm in height, the terminal block can be easily integrated into tight spaces. It features a 135° conductor outlet direction, facilitating efficient wiring arrangements. The terminal's volume resistance is noted at 1.60 mΩ, contributing to effective electrical performance.

The LSF-SMT series emphasizes ease of installation, using a PUSH IN connection method for straightforward assembly on printed circuit boards.
