Weidmuller 1953620000

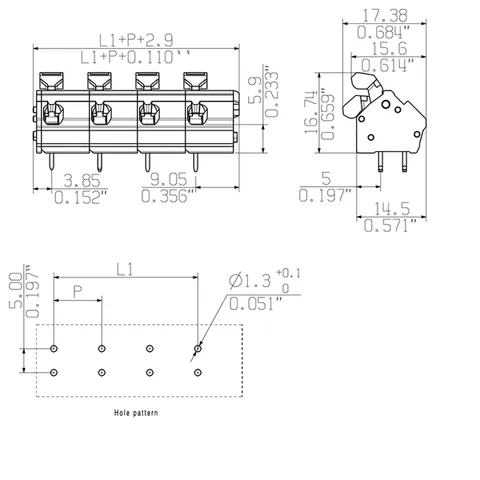

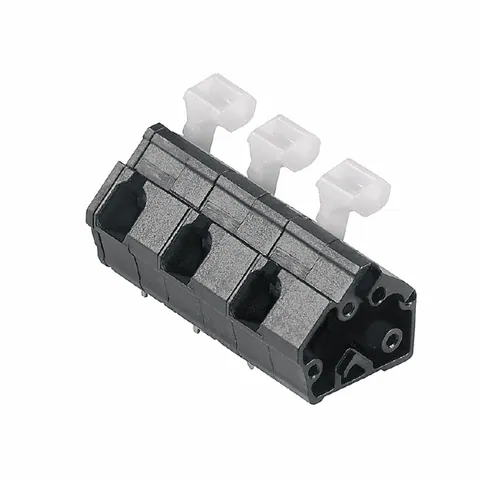

The LMZFL 10/6/135 3.5SW features a width of 10.00 mm and accommodates 6 poles with a 135° conductor outlet direction. The terminals are designed for use with a tension clamp connection, allowing a maximum clamping range of 2.5 mm². The solder pin length measures 3.5 mm and is constructed from tinned copper alloy for enhanced connectivity.

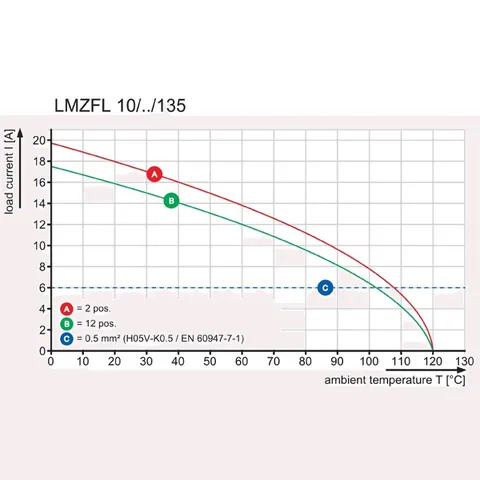

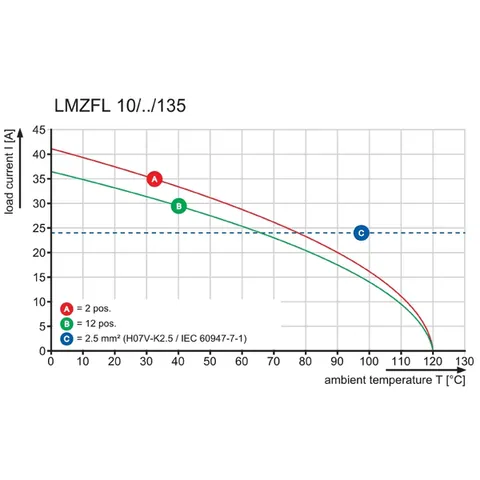

This component complies with various standards including UL 1059 and IEC 60664-1, supporting rated voltages of up to 300 V and currents of up to 24 A depending on the number of poles and temperature conditions. The device exhibits a high insulation strength of ≥ 108 Ω and is suitable for operation within a temperature range of -50 °C to 120 °C.

Constructed from Wemid (PA), the insulation material provides a Comparative Tracking Index (CTI) of ≥ 600, ensuring reliable performance across various applications. The terminals are packaged in a box measuring 105 mm in length, 150 mm in width, and 280 mm in height, with a net weight of 11.99 g.
