Weidmuller 2000440000

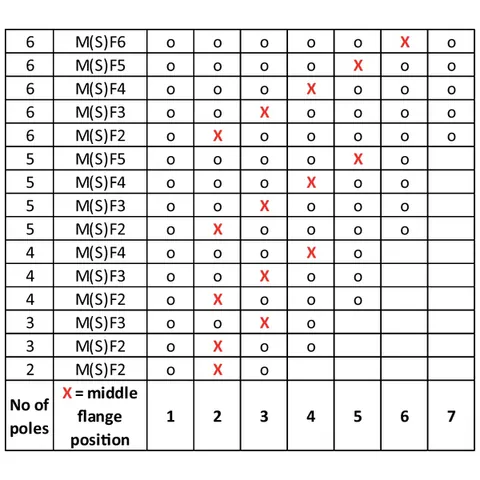

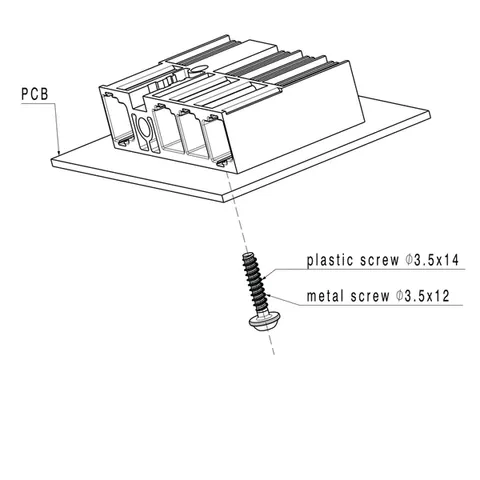

The 10.16 mm PCB plug-in connector is designed with a male header, featuring a closed side and middle flange for efficient mounting. This connector is suitable for THT solder connections and supports 4 poles.

With a solder pin length of 3.5 mm, it provides reliable electrical connectivity. The rated voltage for various use groups according to UL 1059 is up to 600 V, while the rated current reaches up to 60 A for groups B and C, ensuring versatility across applications. Clearance and creepage distances are maintained at a minimum of 8.9 mm and 10.5 mm respectively.

This connector conforms to IEC standards, tested according to IEC 60664-1 and IEC 61984, with a rated impulse voltage of up to 8 kV, making it suitable for demanding environments. The insulating material is PA GF, with a flammability rating of V-0, and it operates effectively within a temperature range of -50 °C to 120 °C.

Approval under the cURus standard ensures compliance with safety regulations, while the product family falls under the OMNIMATE Power - series BU/SU 10.16IT. The product is packaged in a box, ensuring secure delivery.
