Weidmuller 2001070000

The 3.50 mm PCB terminal is engineered to accommodate 30 poles at a 90° angle, featuring a solder pin length of 3.5 mm. The maximum clamping range for wire connections is 1.5 mm², suitable for various applications. With a rated voltage of 150 V and rated current of 12.5 A, this terminal meets the UL 1059 standards, ensuring reliable performance in electrical installations.

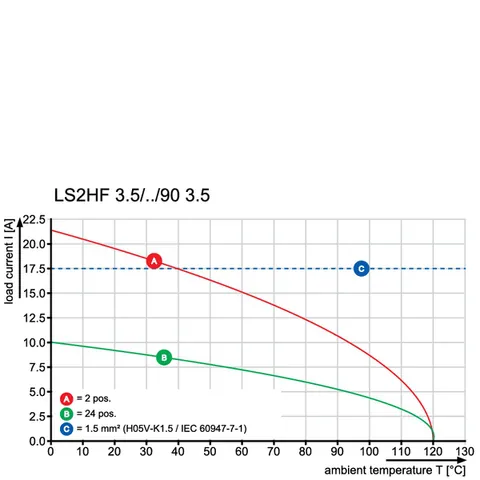

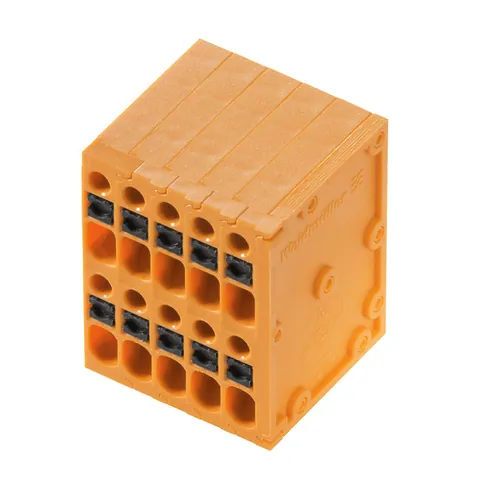

Constructed from PA 66/6 material and finished in orange, the terminal also provides excellent insulation strength of ≥ 108 Ω and a temperature range suitable for operation between -50 °C and 120 °C. The product is compliant with IEC 60947-7-4, demonstrating its capability to handle a rated current of up to 17.5 A under specified conditions. The terminal is designed for PCB mounting via THT solder connections, with a pitch of 3.5 mm, ensuring compatibility with standard circuit layouts.

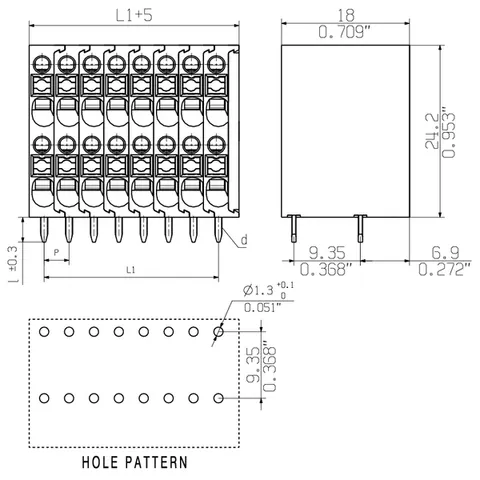

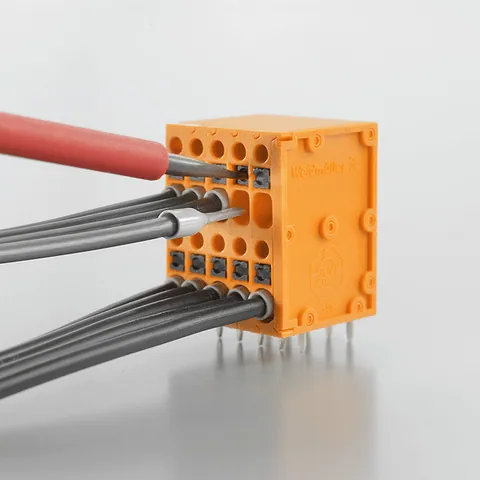

Dimensions include a width of 57.5 mm and a depth of 18 mm, with a net weight of 27.938 g. This product is packaged in a box with specific dimensions for optimal storage and transport. For best performance, the terminal should be used with wire end ferrules as specified under DIN standards.
