Weidmuller 2012890000

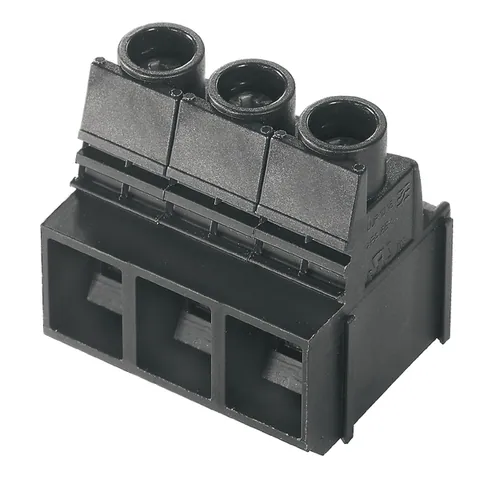

The LUP 10.16/03/90V 5.0SN BK BX is designed for printed circuit board applications, offering a pitch of 10.16 mm and a clamping yoke connection. It supports a maximum clamping range of 16 mm² and has a net weight of 27.66 g. The terminals feature a 90° conductor outlet direction and consist of three poles, making them suitable for various configurations. The solder pin length of 5 mm ensures reliable connections.

This component is tested according to IEC standards and is rated for a surge voltage class of up to 1,000 V with a short-time withstand current of 700 A for 1 second. The operating temperature range extends from -50 °C to 120 °C, with a storage temperature limit of -25 °C to 55 °C. The insulating material used is Wemid (PA), classified with a Comparative Tracking Index (CTI) of ≥ 600 and a UL 94 flammability rating of V-0.

For optimal performance, the component is compatible with wire cross-sections from AWG 22 to AWG 6. The connection method adheres to international standards, ensuring compliance with recognized certification bodies such as UR and cURus. Furthermore, touch-safe protection is rated at IP20 when plugged and IP10 when unplugged, ensuring operational safety.
