Weidmuller 2453700000

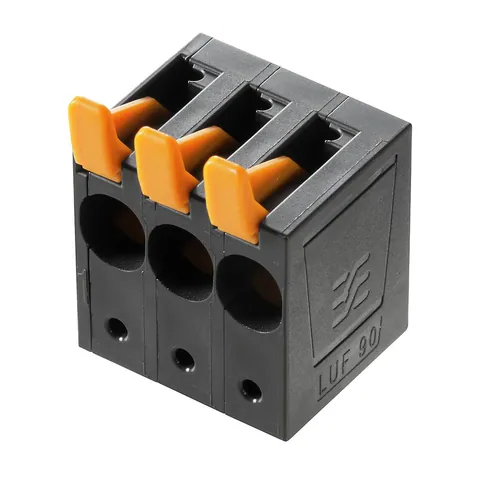

The terminal is designed for printed circuit boards with a pitch of 10.00 mm and offers a 90° conductor outlet direction. It supports three poles and utilizes a PUSH IN connection method with an actuator. The maximum clamping range is 16 mm², making it suitable for various wire sizes, accommodating solid conductors from 0.5 mm² to 16 mm² and stranded conductors from 6 mm² to 16 mm².

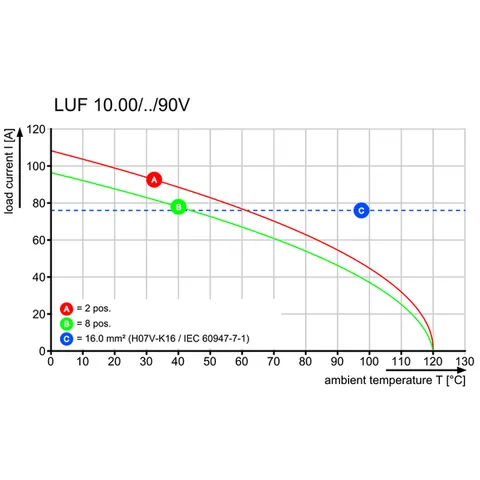

This product has been tested according to IEC 60947-7-4, with a rated current of 76 A at 20°C across all poles, and a rated voltage of 1,000 V for surge voltage class II/2 and III/2. Its insulating material is Wemid (PA), ensuring a high comparative tracking index (CTI) of ≥ 600. The terminal's operating temperature range spans from -40°C to +120°C.

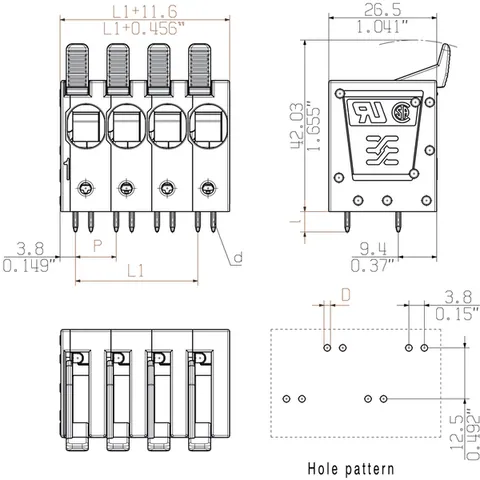

Classified under ETIM 6.0 as EC002643, this terminal guarantees compliance with international standards and norms. The net weight is 31.65 g, with dimensions of 31.58 mm in width, 47.03 mm in height, and 26.45 mm in depth. The terminal is suitable for modular applications with a touch-safe protection rating of IP20 when plugged and IP10 when unplugged.
